6mm Fish Tape |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The fiberglass cable puller is a
high-quality device for assisting in guiding and pulling cables and
ropes in different pipes and can allow the fiberglass wire to easily
pass through the narrow pipelines by means of the smooth and elastic
surface. The fiberglass wire can be wound in the supporting frame
orderly and can effectively resist the severe environment. The cable
puller has the advantages of being easy and convenient to use and
maintain, being high in durability and adaptability, saving time and
labor, improving the working efficiency and so on. |
|
Product
Parameters |
|
Length |
130m (426.51') |
|
Diameter |
6mm (0.24'') |
|
Color |
Yellow |
|
Density |
>150g/m |
|
Working situation temperature |
-40℃
~ +80℃ |
| Material |
Epoxy fiberglass (inner) and high density
polyethylene (outer) |
| Net weight |
7KG (15.43LB) |

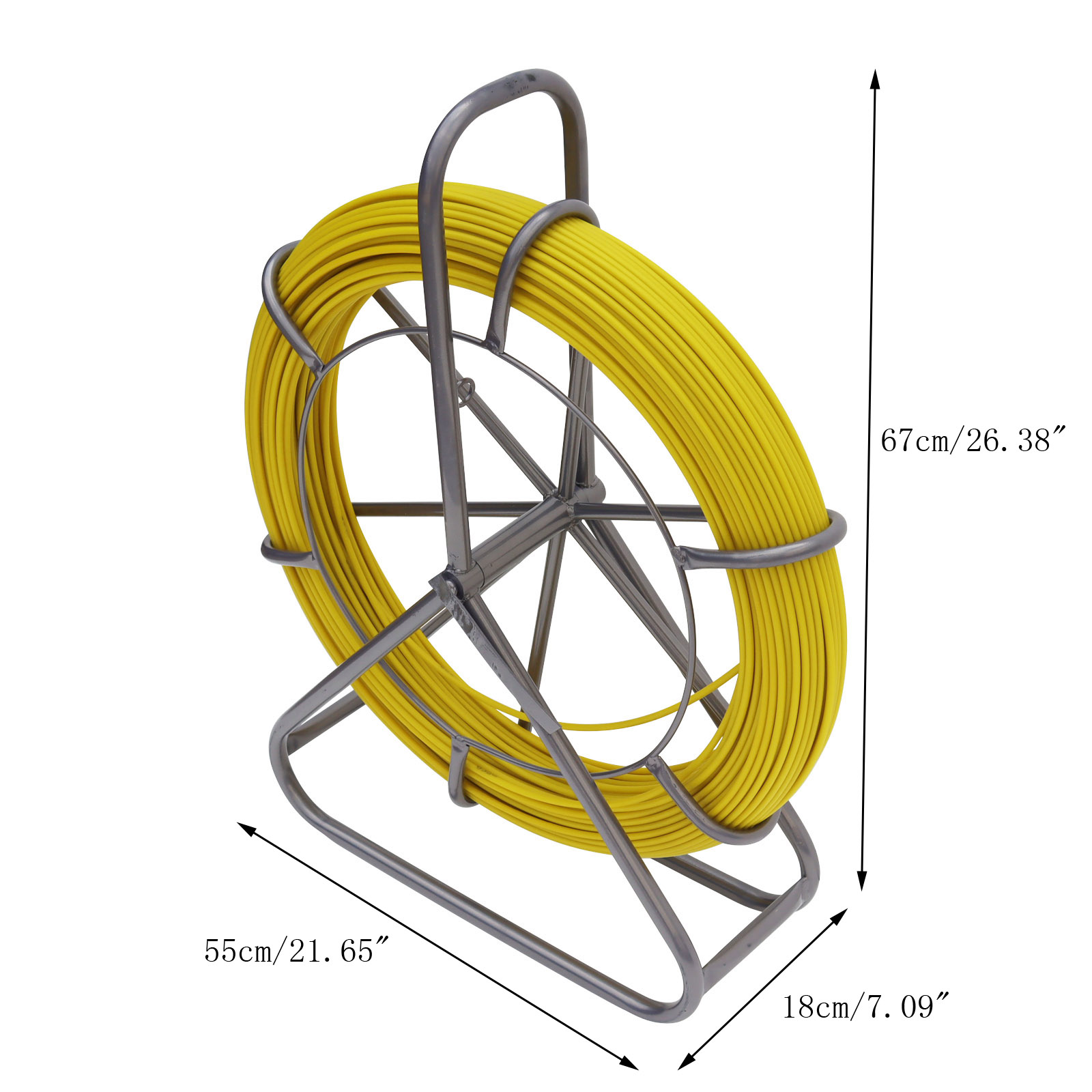

| Product size |
55x18x67cm
(21.65''x7.09''x26.38'') |
|
 |
|
Product
Features |
|

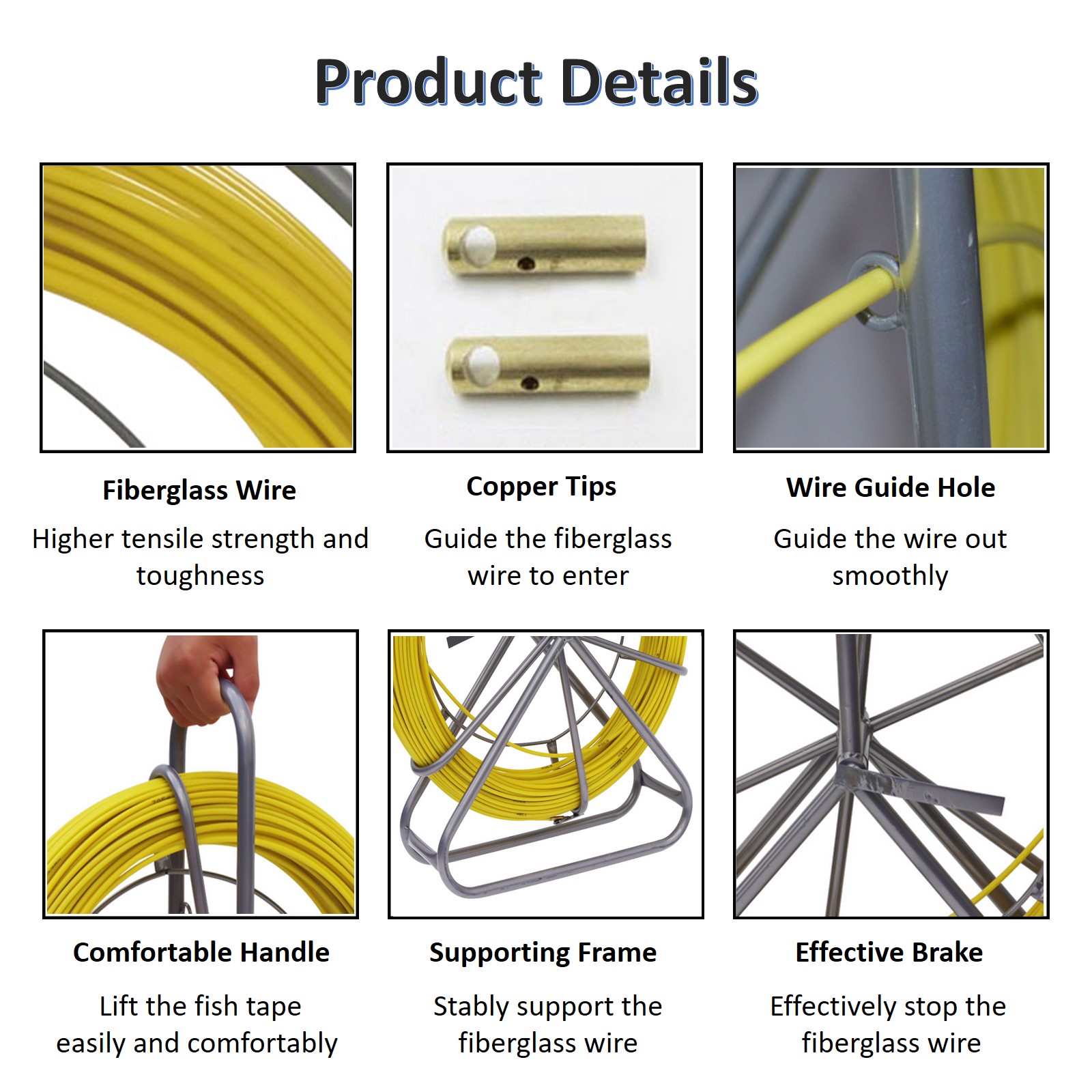

1. Fiberglass wire materials, 130m
length, 6mm diameter, smooth, firm and durable, high tensile strength
and durability.
2. It can flexibly pass through complex elbows, S-shaped pipes and
narrow spaces, is not prone to permanent deformation and still can keep
the original property after repeated use.
3. Good insulation and anti-static performance, suitable for electrified
or sensitive environments, and avoid the short circuit risk.
4. Wide environmental temperature range, it can normally work at the
temperature of -40℃ ~ +80℃ and has good adaptability.
5. It has rust and corrosion resistance, moisture protection, acid and
alkali resistance and aging resistance.

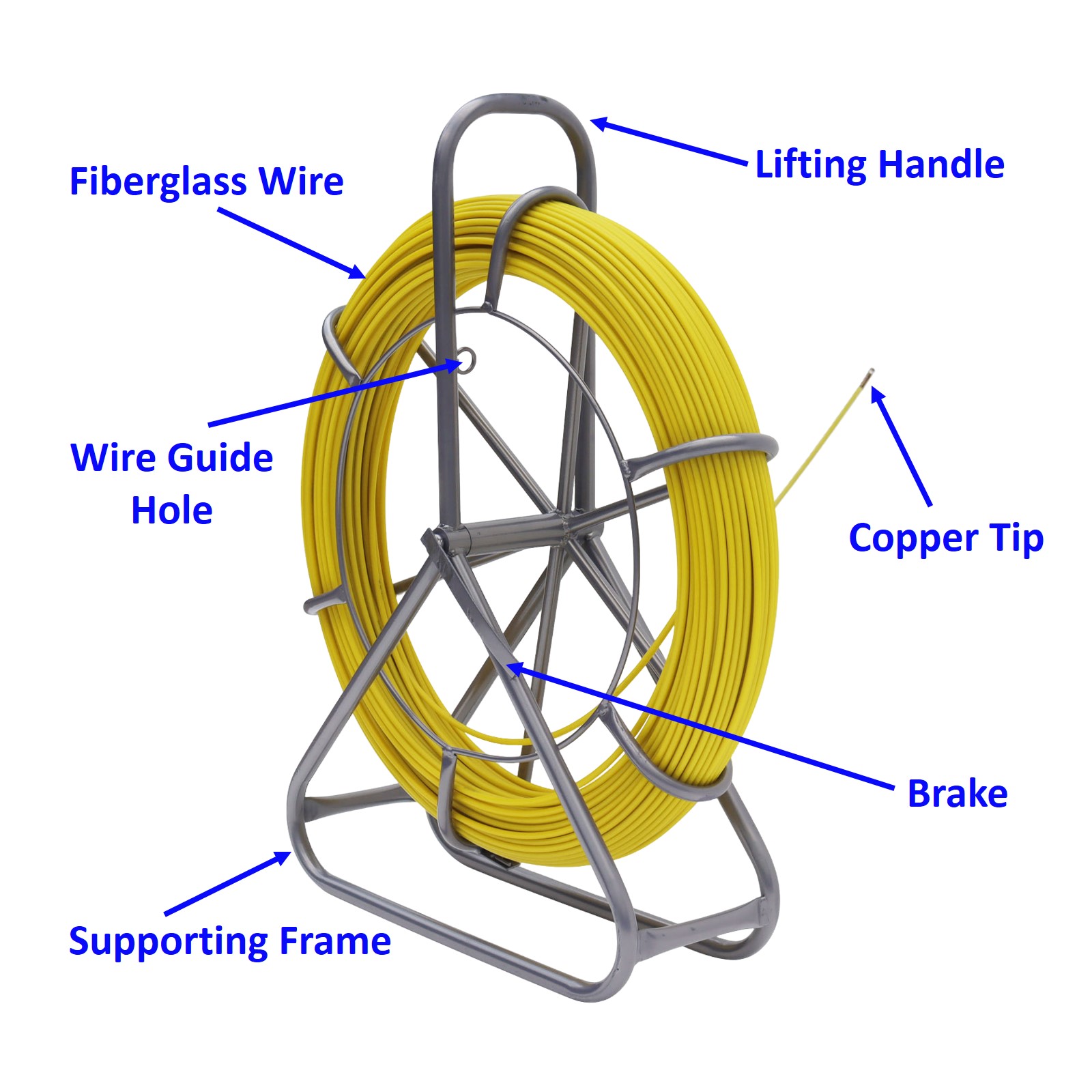

6. Give 2 spare copper tips as a gift, convenient to replace; equipped
with a stable supporting frame to achieve a stable fixing effect.
|
 |
 |
|
Attention |
|
1. When the angle of the pipeline
is smaller than or equal to 90 degrees, the user should pay special
attention to protecting the traction head against breakage, and a
certain measures should be taken to prevent the fish tape from damage
when the fish tape is pulled out of the channel. |
|
2. The bearable temperature range
of the fish tape is -40℃ to 80℃，and the fish tape should not make
contact with the supercool or overheated object or environment in the
construction process and should be placed in a shady and cool place
after use. |
|
3. The fish tape cannot be rolled
and pressed by vehicles and other heavy objects, otherwise the service
life can be greatly shortened. |
|
4. It is suggested that various
unwinding pulley blocks can be used to improve the working efficiency
and protect the fish tape. |
|
Application |
|
As a high-quality auxiliary
device, the fish tape can be used for pipeline cleaning and arrangement
of optical cables, power cables and other wires and can be widely
applied to the fields of power engineering, communication engineering,
construction engineering, traffic facility, petrochemical engineering,
municipal engineering and so on. |
 |
|
Product
Display |
 |
 |
|
Item Number (170549):
1 x Fish Tape 6mm*130m |
|
|
