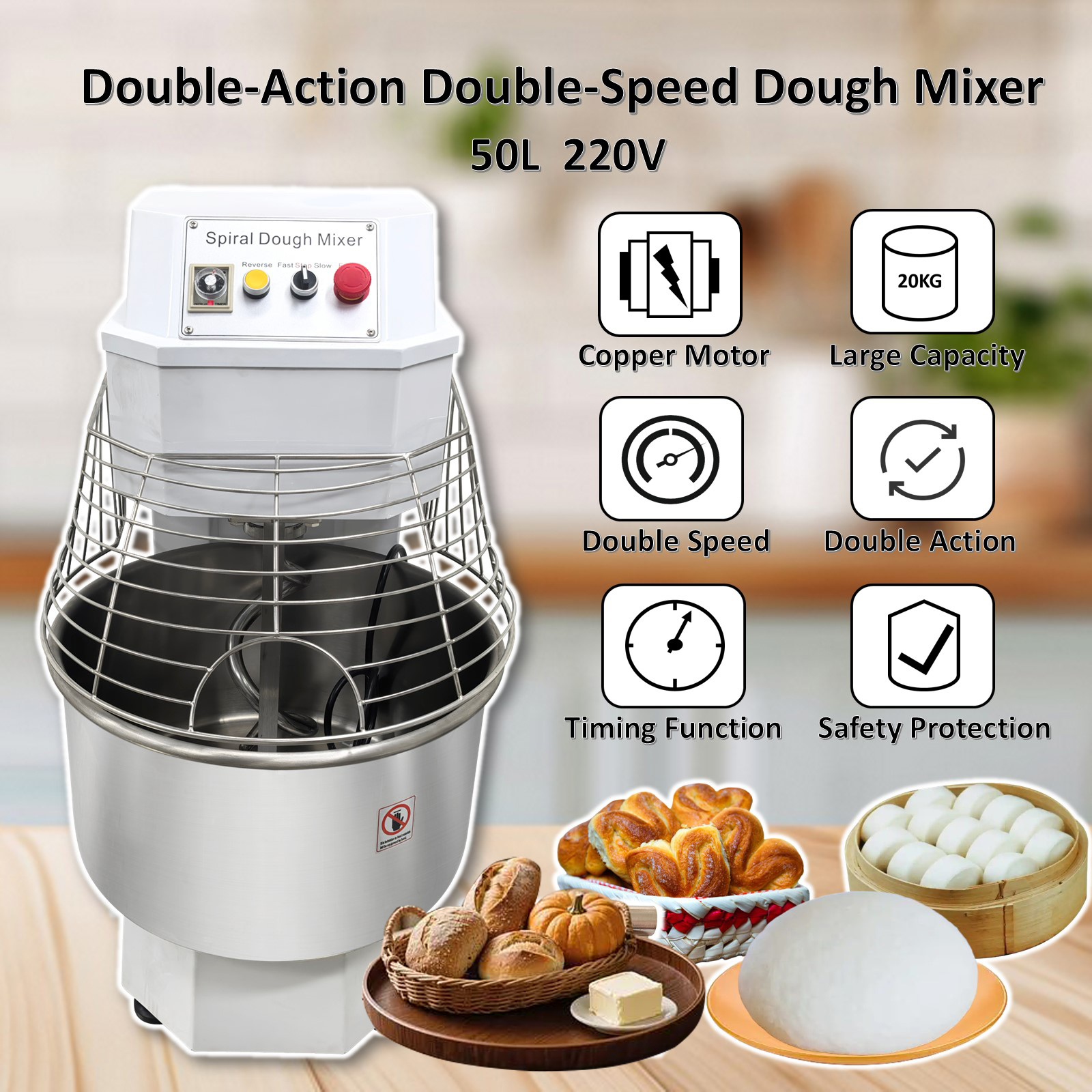

50L Double-Acting
Double-Speed Dough Mixer 220V |
 |
|
Product Overview |
| The
double-action double-speed dough mixer is a special kitchen helper for
high-efficiency and high-quality mixing of flour and other raw
materials. It has multiple functions of high and low mixing speeds,
double mixing actions, reverse rotation, precision timing, safety
protection and so on. Compared with manual dough kneading operation, the
dough mixer has the advantages of liberating double hands, saving time
and labor, improving the dough uniformity, achieving flour mixing
without dead corners and enhancing the working efficiency. It is a
high-quality kitchen tool for customers. |
|
Product Parameters |
|
Model |
TJ-50 |
|
Voltage |
220V 60Hz Two-phase electricity |
|
Power |
2.5KW |
|
Maximum weight of flour |
20KG (44.09LB) |
|
Capacity of mixing bucket |
50L |
|
Net weight |
154KG (339.51LB) |
|
Product Size |
40x82x98cm (15.75x32.28x38.58
inches) |
|
Diameter of mixing bucket |
50cm (19.69 inches) |
|
Height of mixing bucket |
29cm (11.42 inches) |
|
 |
|
Attention |
 |
|
There is no plug on the
machine. Please let the professional electrician connect the
power cord to the 220V power supply with firm and reliable
grounding. |
|
| |
 |
|
Please ensure the firm and
reliable grounding of the machine to avoid the electric shock
risk. |
|
| |
 |
|
Please close the protective
cover in place during operation, otherwise the machine will not
work. |
|
| |
 |
|
Do not touch the running
parts during operation.
Do not put the hands into the
machine during operation. |
|
|
Product Features |
 |
| |
 |
The dough mixer
is equipped with a compact and simple control panel where multiple
switches are integrated. Control is easy and convenient, and the user
experience is better.
- Timer--The user can set the time for
slow and fast mixing operation through the timer as required. Once
the time is up, the mixer will automatically stop running.
- Reverse button--The dough can be
easily taken out through the reverse button after mixing is
finished.
- Speed switch--The fast and slow
mixing speeds can be freely selected through the speed switch to
cater to different speed requirements of customers.
- E-Stop switch-- The emergency stop
switch can be pressed to stop the machine in emergency, thereby
greatly avoiding accidents and risks.
|
|
|
| The
dough mixer is equipped with a high-quality pure copper motor,
and the power is 2.5KW for the flour mixing operation. The
copper motor has the low failure rate, good rust, corrosion and
oxidation resistance, low noise and vibration, stable
performance and long service life. |
|
The spiral mixing
rod is matched with the dough mixer. The mixing rod and the
mixing bucket can rotate at the same time to mix flour and
additives so that the materials can be mixed more evenly and
smoothly, and the better mixing effect can be achieved. The
mixing rod made of stainless steel materials has good firmness
and high durability. |
|
| |
|
|
| A 50L
stainless steel mixing bucket is used for dough mixing. The
maximum weight of flour can be 20kg, so that the working
efficiency is obviously enhanced. The mixing bucket can be
cleaned more easily and conveniently after use. It has the rust,
corrosion and wear resistance and high quality. |
|
The dough mixer is
equipped with a stainless steel protective cover for safety
protection. The machine stops running when the protective cover
is opened, so that the personal safety is well guaranteed. The
user can conveniently observe the mixing condition through the
hollowed design. |
|
| |
|
|
|
Multiple strip-shaped and circular heat dissipation holes are
designed in the back of the mixer, dissipation of the heat
generated in the working process can be quick and timely, the
motor can be well protected against burnout, and the service
life and the mixing effect can be well guaranteed. |
|
The dough mixer is
equipped with four anti-slip supporting legs on the firm base,
the supporting force is stably provided for the machine body,
the machine body can be effectively prevented from moving
randomly on the ground, and the vibration of the machine body
can be well reduced during operation. |
|
|
Operation Method |
| 1. Unpack the
machine and check whether the machine is damaged. |
| 2. Place the
machine on the flat ground stably and firmly. |
| 3. Clean the
mixing bucket and the mixing rod, add the appropriate quantities of
flour, water and additives to the mixing bucket, and close the
protective cover in place. |
| 4. Connect the
power cord to the 220V power supply, turn the E-stop switch in the
direction of arrow, rotate the timer knob to set the mixing time, choose
the fast speed or the slow speed for mixing, and the mixer starts to
work. |
| 5. After the
mixing time is up, the mixer automatically stops running. Press the
reverse button continuously, the machine can rotate reversely at a low
speed. Release the reverse button, the machine stops running. Open the
protective cover and take the dough out of the mixing bucket. |
 |
|
Application |
| As a high-efficiency dough
making helper, the double-acting double-speed dough mixer has the
advantages of saving time and labor, being stable in performance and
high in working efficiency and making dough quickly and evenly, and is
applicable to the food industry and places, such as cake shops,
restaurants, bakeries, food factories and snack bars. |
 |
|

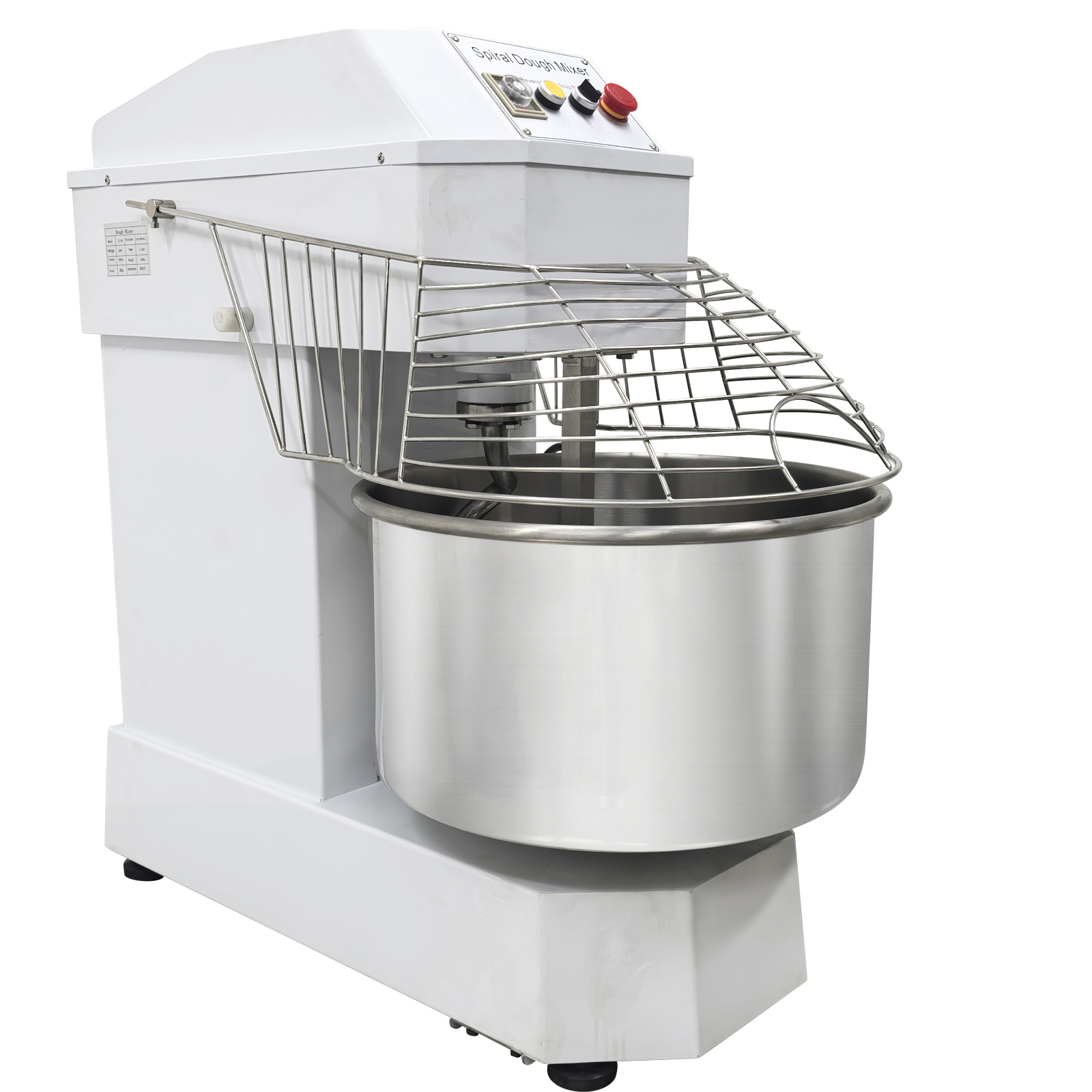

Product Display |
 |
 |
 |
 |
|
Item Number (170175): 1 x Double-Acting
Double-Speed Dough Mixer 220V 50L |
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
