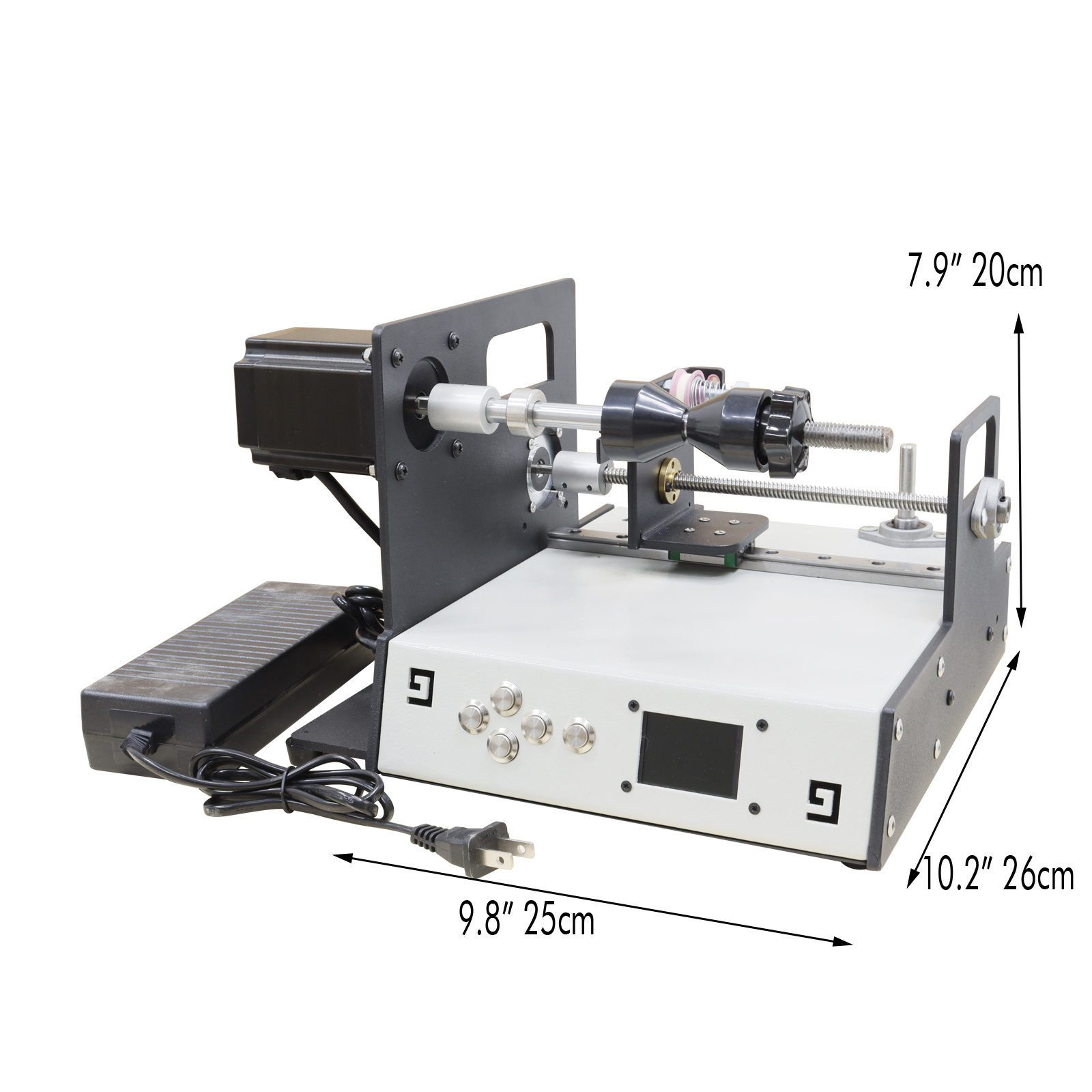

| Winding machine, automatic wire arrangement winding machine 24-220V |
| The winding machine, as a specialized electronic device, plays a significant role in the modern electronic manufacturing field. It is mainly used for automatically or semi-automatically winding various coils, which greatly improves production efficiency and product quality. |
 |
Specification :
Power Supply: 220V/110V to 24V 6A
Precision: 0.01MM (closed-loop motor cabling)
Speed: 2-15 turns per second, 120-900 turns per minute
Torque: 2.3NM
Power:100W |
 |

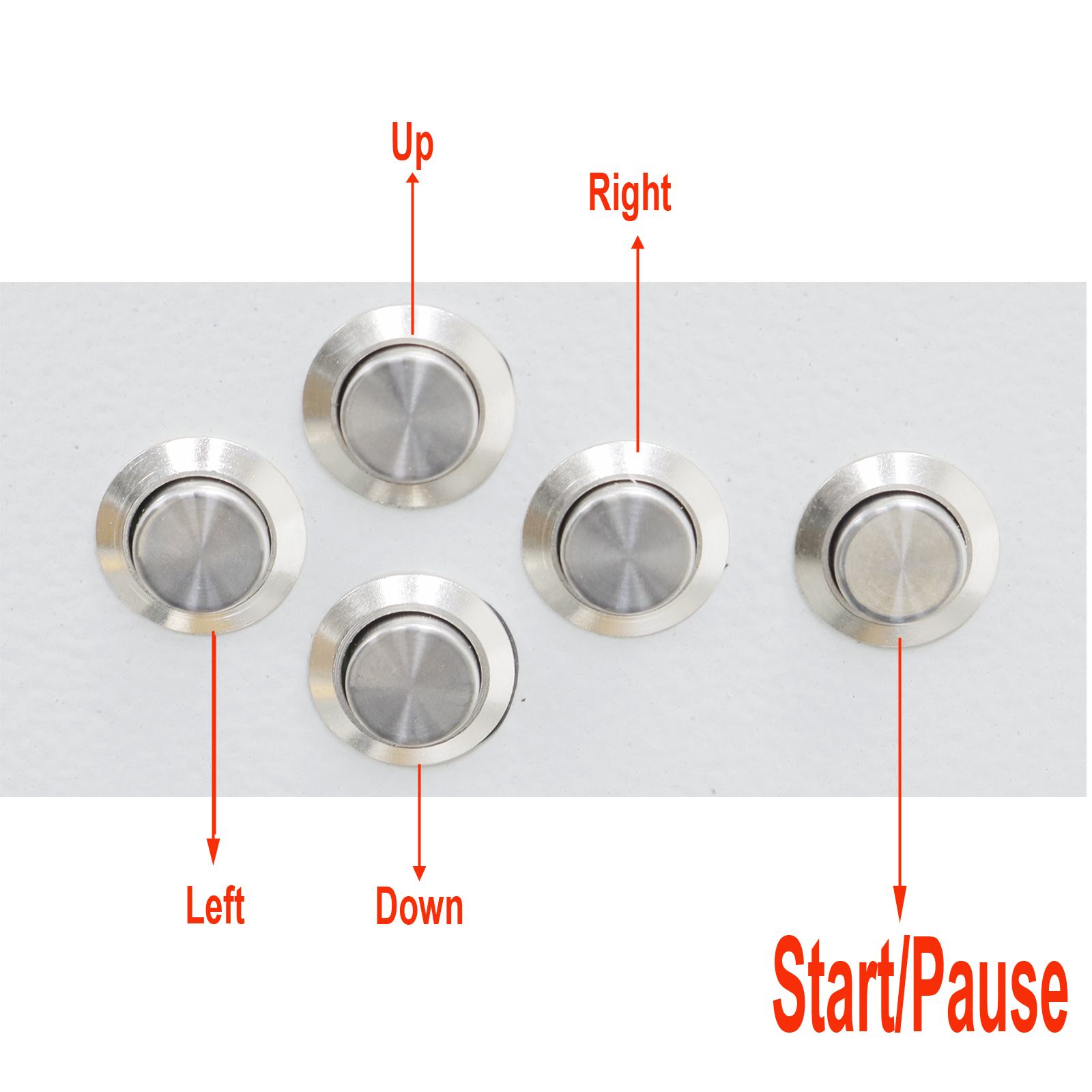

Button Instructions:
1-Left/Right Buttons: Switch different function pages.
2-Up/Down Buttons: Adjust the values on the corresponding function page and achieve real-time automatic saving after adjustment.
3-Start/Pause Button: Press it again to pause; long press it for 5 seconds to clear the completed value of the current set of coils and restart from 0. |

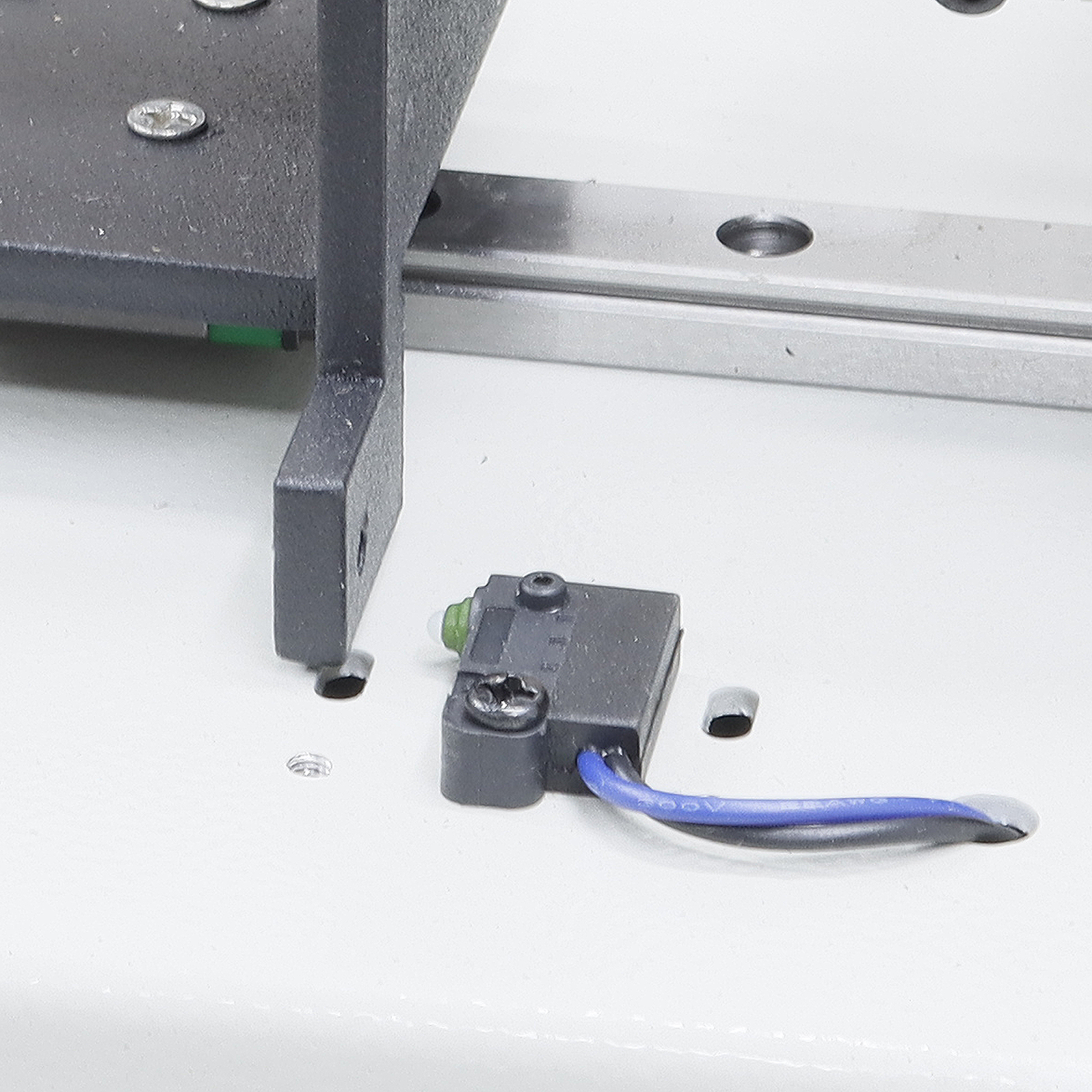

Positioning:
Absolute Zero and Relative Zero
After the machine is powered on, the machine's cabler moves left by default to find the absolute zero point. Therefore, the positioner must be placed on the left side of the cabler, otherwise an error will occur. |
 |
 |

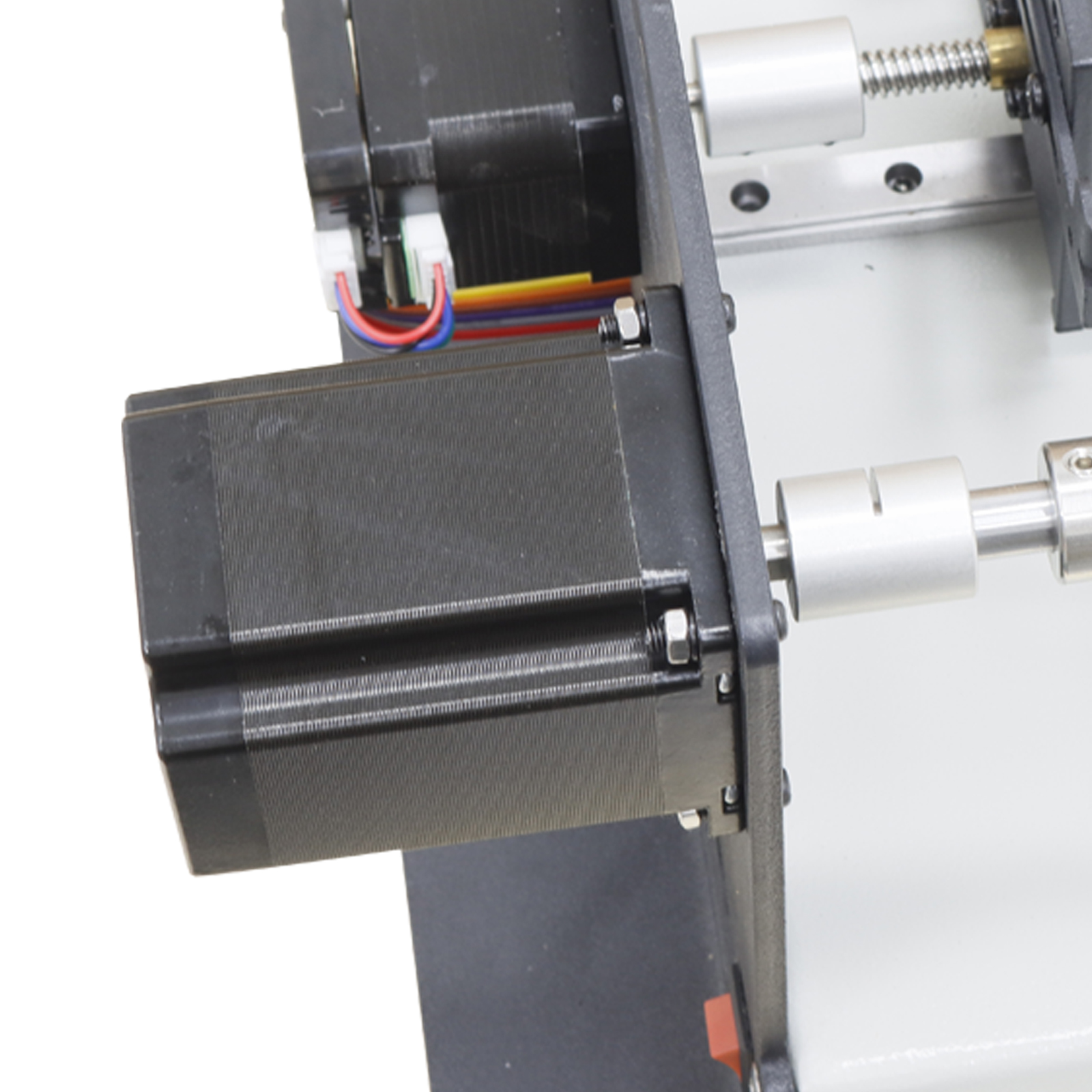

Stepper Motor: 4.2A 2.3N.m A+black A-green B+red B-blue |

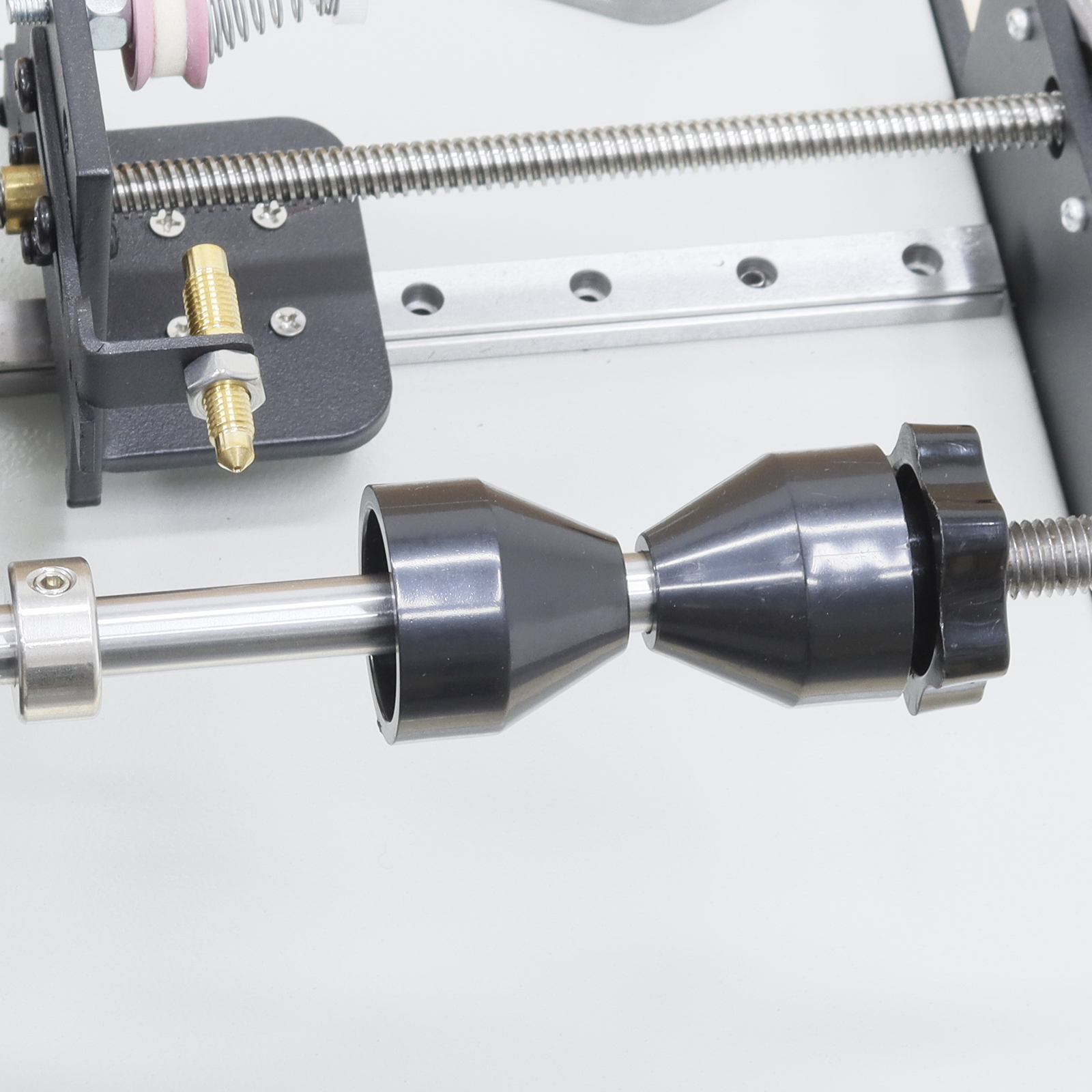

Spool fixation:
Maximum fixed spool width 10cm
Maximum fixed wire diameter 10cm
The diameter of the screw shaft 1cm (M10) |
 |
 |

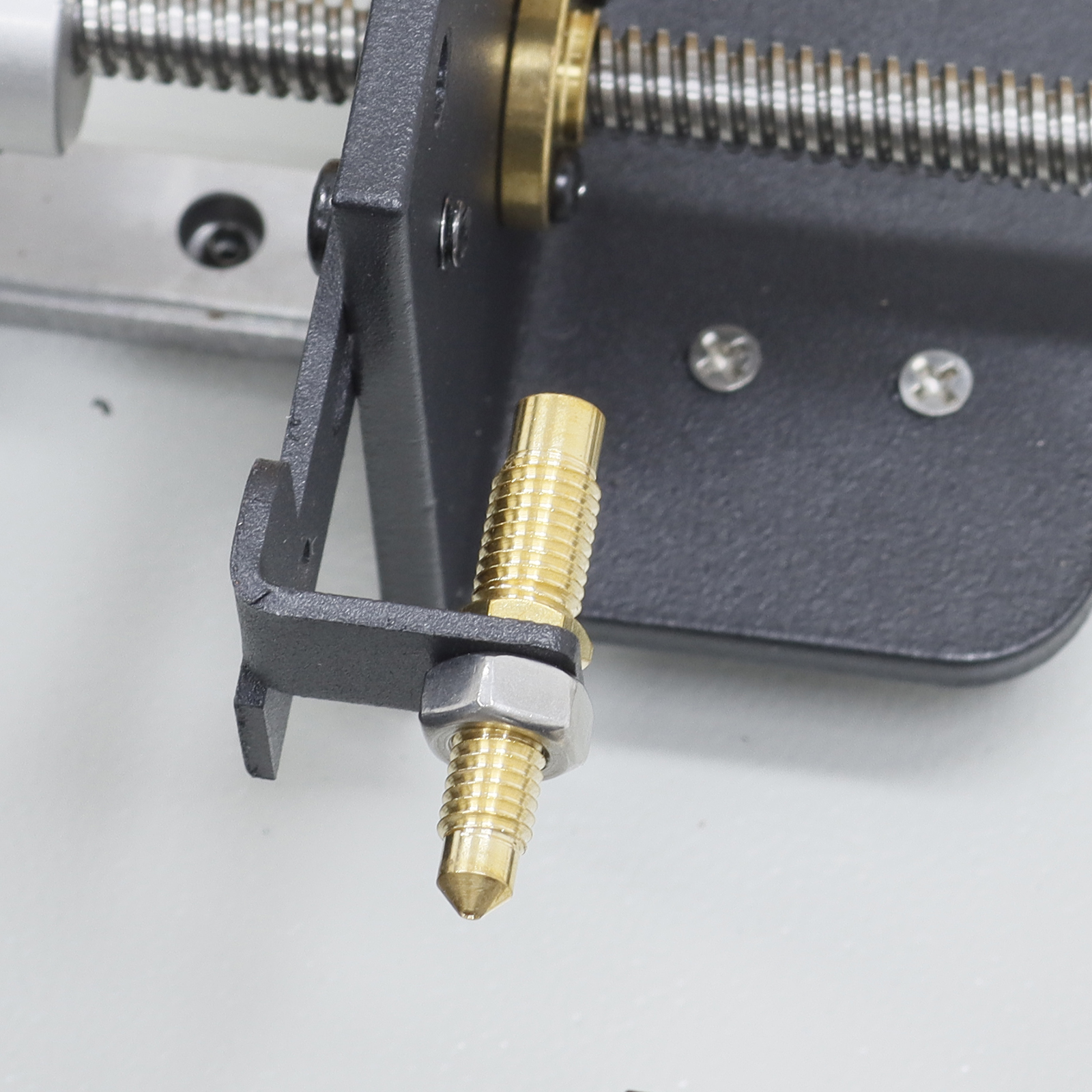

Bore diameter 0.5mm |

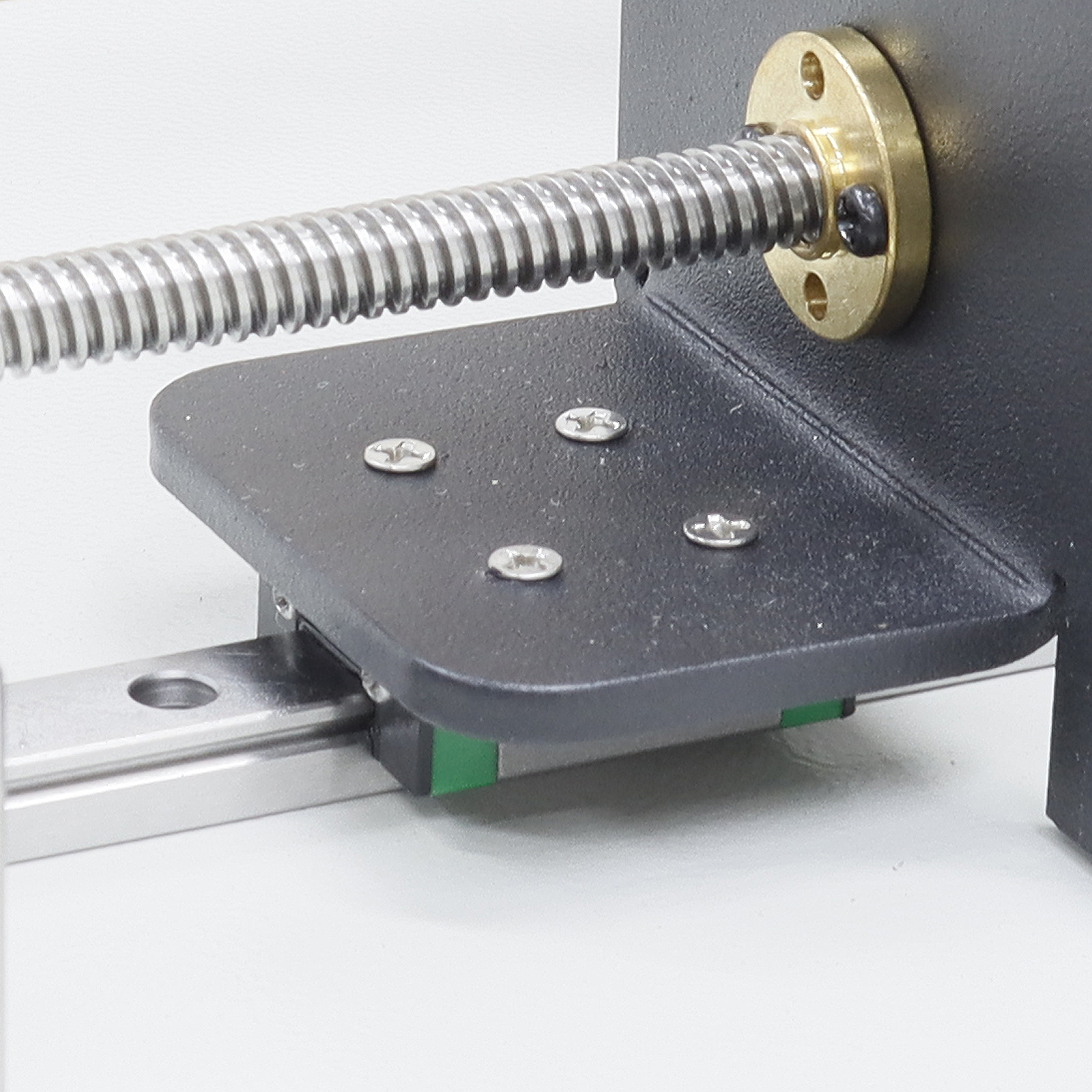

| Linear guide rails and ball screws |
 |
How to use
1-Connect the machine with the power supply and turn on the power switch.
2-Fix the spool securely and adjust the test winding parameters for multiple times according to the instructions.
3-Start winding the wire.
4-Turn off the power after work.
|
Warning:
-Read carefully and understand all INSTRUCTIONS before operating the machine. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-Always keep children away from this machine, PROHIBIT children from operating the machine.
-Never touch the RUNNNING Parts or insert hard ware into the machine.
-Always unplug the machine when assembling or disassembling the unit.
-Press the On/Off switch once to turn on or turn off the machine. Pressing the buttons for multiple times may damage the machine.
-Each batch may have small improvements as the product needs to evolve. |
Item included:Winding machine, automatic wire arrangement winding machine 24-220V *1
Item Number: 134106 |
