Lab Planetary Ball Grinding Mill

220V Lab Planetary Ball Grinding Mill
The laboratory planetary mill is universally applicable to quick drying or wet grinding of inorganic and organic samples for analysis, quality control, material testing and mechanical alloying. In synthesis, the ball grinding mill can be used for mixing and homogenization of dry samples,emulsions and pastes.

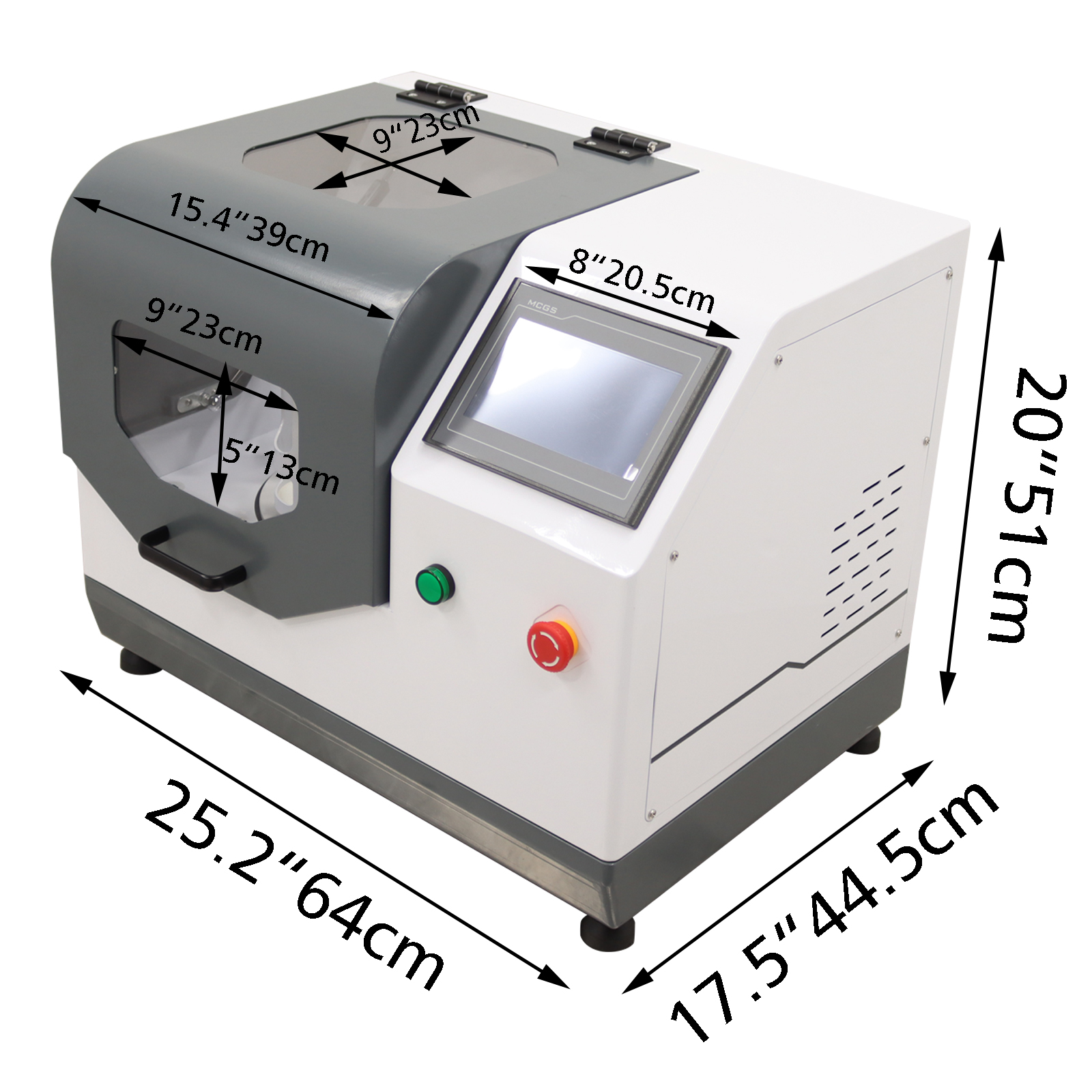

Machine standard grinding tank capacity: 100ml4 Standard grinding tank material：Agate(Containing ball) voltage:220V 50/60hz Power:370W Usable grinding tank capacity: 100ml /50ml Continuous operation timing range(min)：1-999 Forward and reverse alternating cycle selection(min):1-99 Rotational speed(r/min): rotation 50~400 revolution 100~800 Size: 19.7"12.2"16.1"(5031*41 cm )
	The vfd drive adopts inflammable plastic for the shell and 3-layer coatings on the inner motherboard to protect the vfd from dust, humidity and corrosion. Rheostat variable speed control adopts precision pressure regulating knob for voltage regulation, with high accuracy and good stability,Through the digital display screen, you can accurately understand the working voltage of the machine.

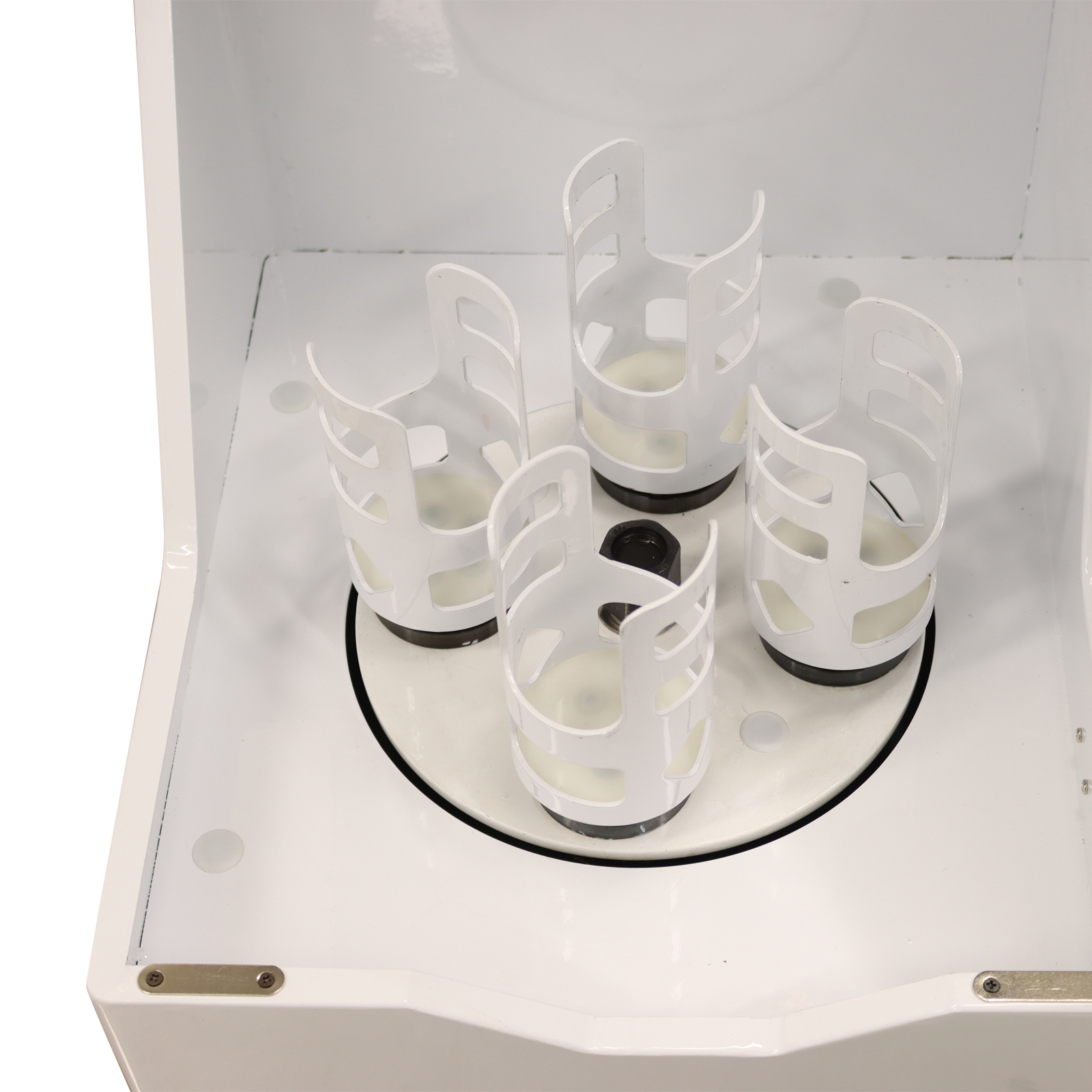

	4 positions for placing the jars, you can choose different grinding methods, you can also grind a variety of materials at the same time,Can greatly improve efficiency. The material is crushed and torn apart in two or four grinding jars by grinding balls.

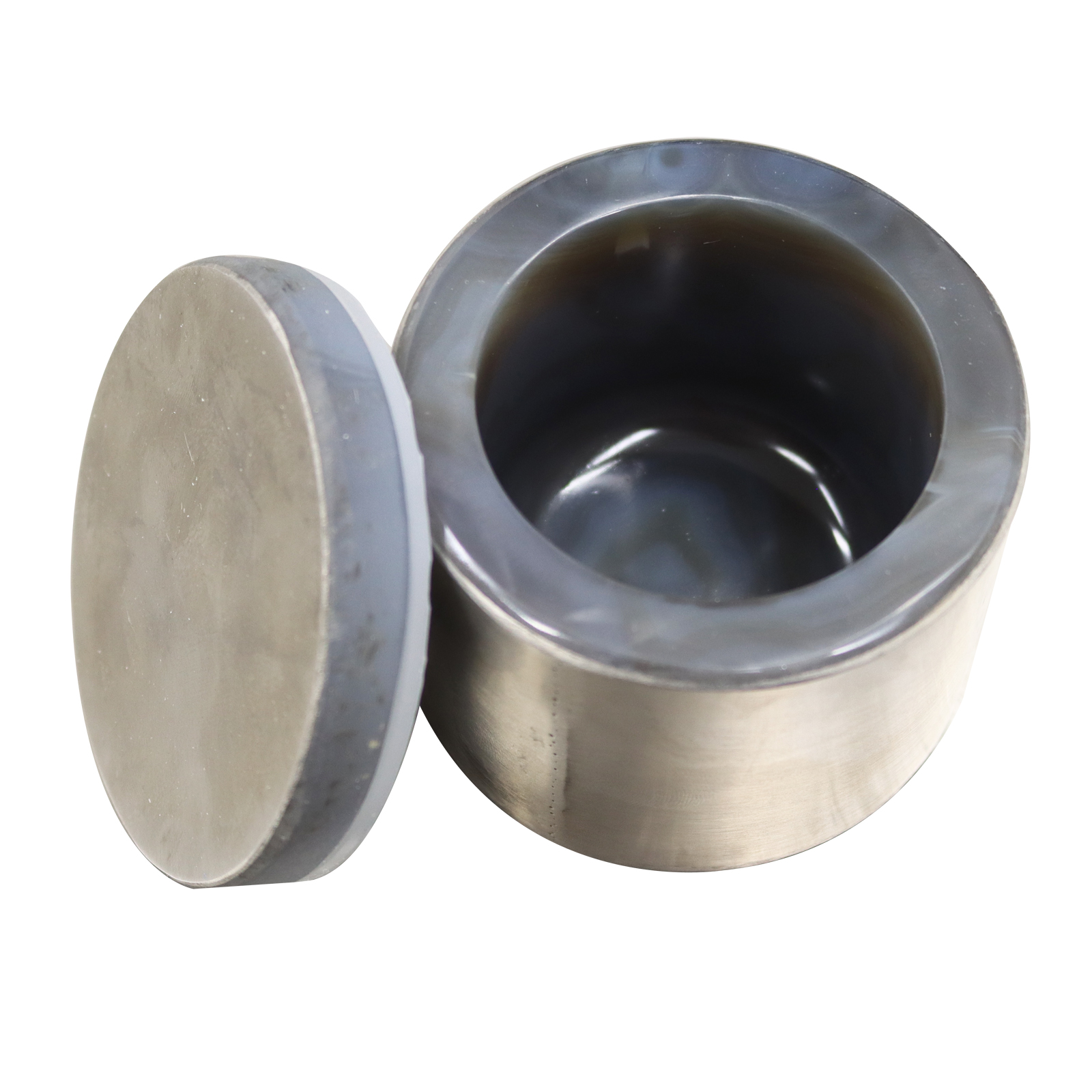

	High purity natural agate ball mill jars. Resistant to acids (except HF) and solvent, these jars are used whenever small quantity of samples need to be ground without contamination. Each jar set includes grinding jar, lid, rubber sealing gasket and mixed agate grinding balls.

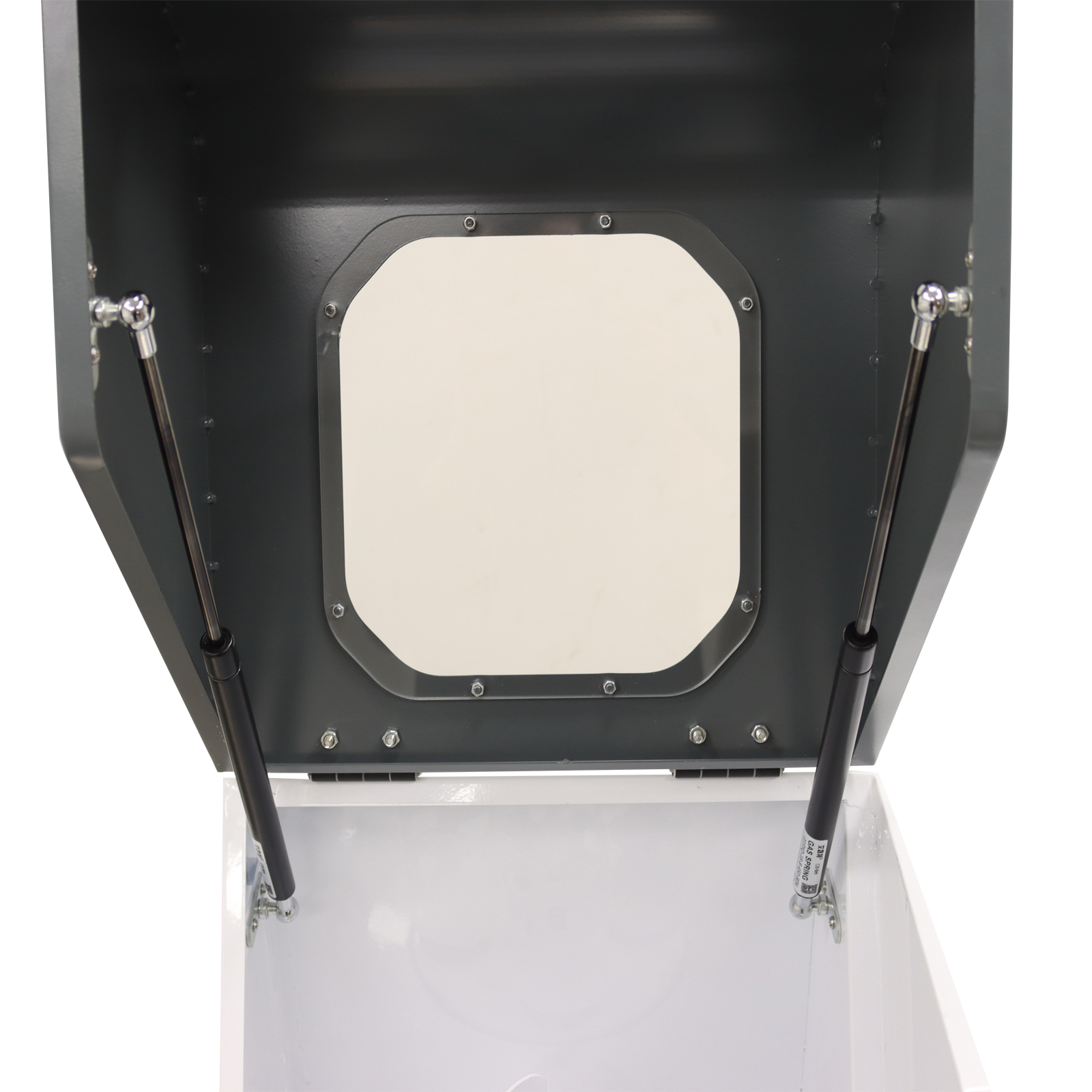

	9inch visualization window
Working Principle Planetary ball mill has four ball grinding jar holders installed on one planetary disk. When the planetary disk rotates, the jar shaft makes planetary movements and the balls in the jars grind and mix samples in high speed movement. The instrument can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of ground products can be as small as 0.1 micron.

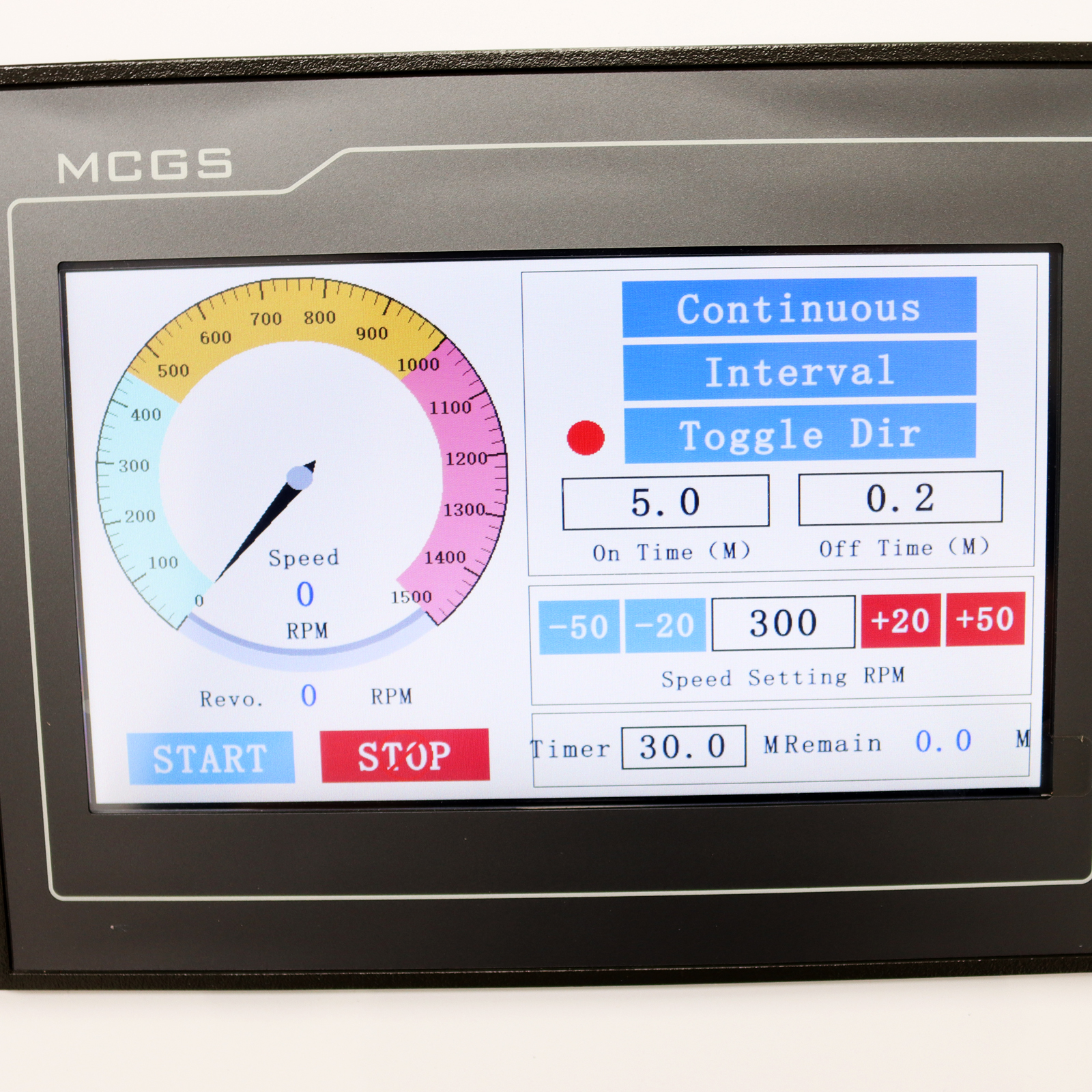

Features Elegant design, easy to operate. Ideal for wet or dry grinding application Automatic and programmable control with LED display. multiple grinding modes to choose. High Uniformity and excellent repeatability Fast rotational speed, high efficiency and fine granularity Four samples with different sizes and materials in one experiment Programmable interval and pause times Stepless speed regulation, reversing function Large range of materials available for grinding tools Gear-drive offers an effective solution to problems caused by belt driving Low center of gravity, good rigidity, compact structure, low noise, safe and reliable operation, no pollution and small wear Cooling of the grinding chamber with a built-in fan for long grinding times
Items included: One machine, agate ball mill jars (100mL)*4. Item Number: 134101
You can make order with no worry. Any concerns just feel free to let us know, we'll reply in 24 hours in normal condition. Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays. Warranty: 6 months' warranty for the machines, not for the consumables. We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
