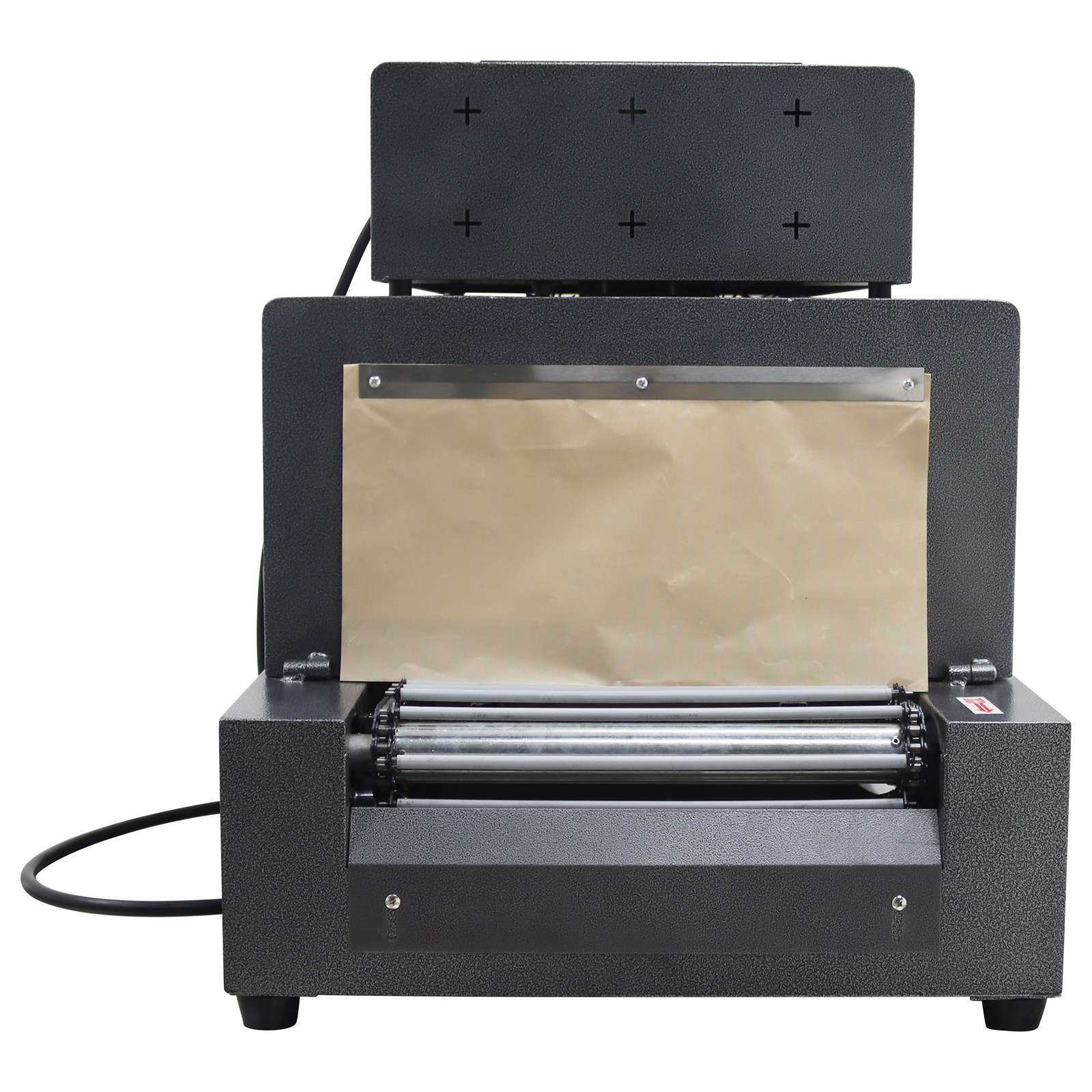

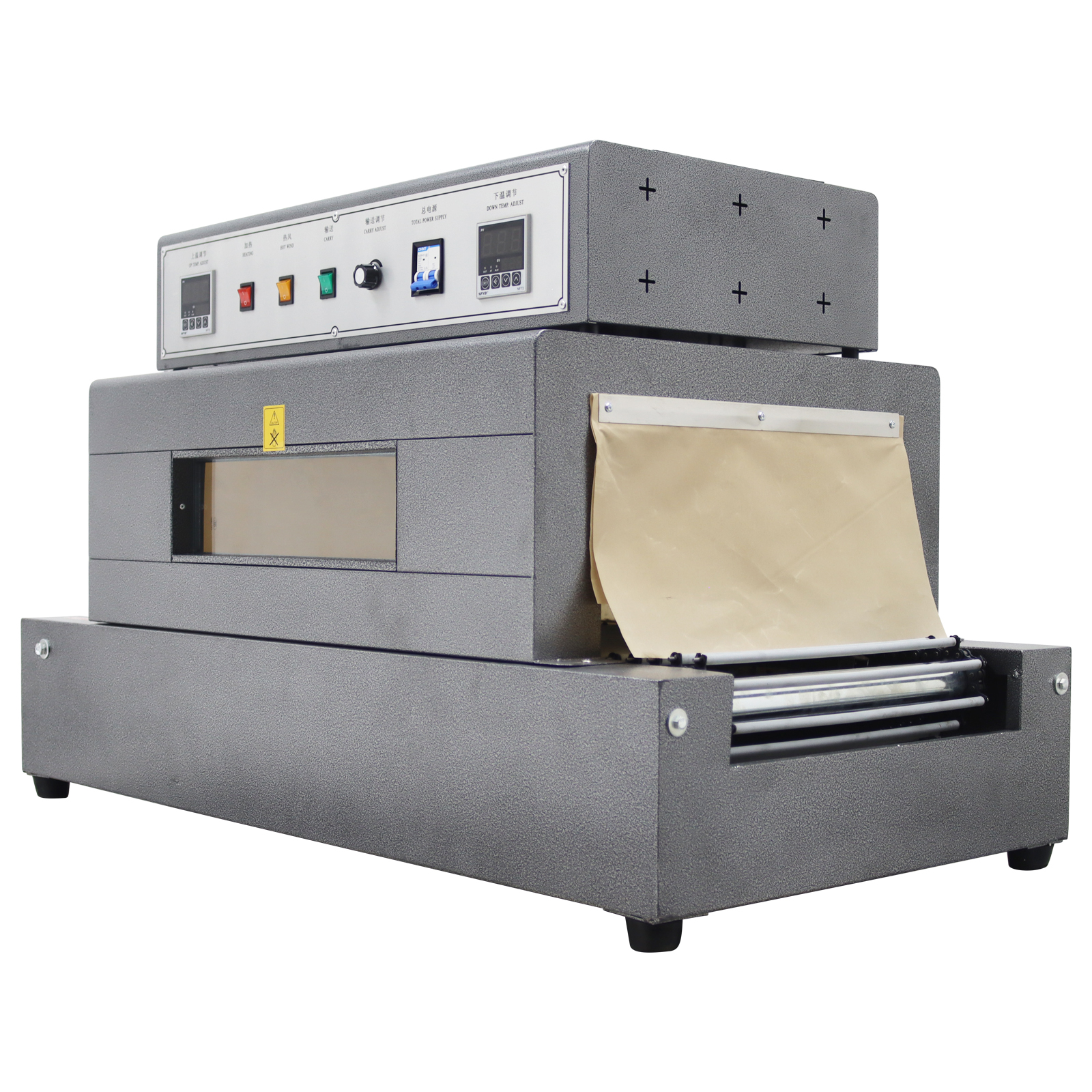

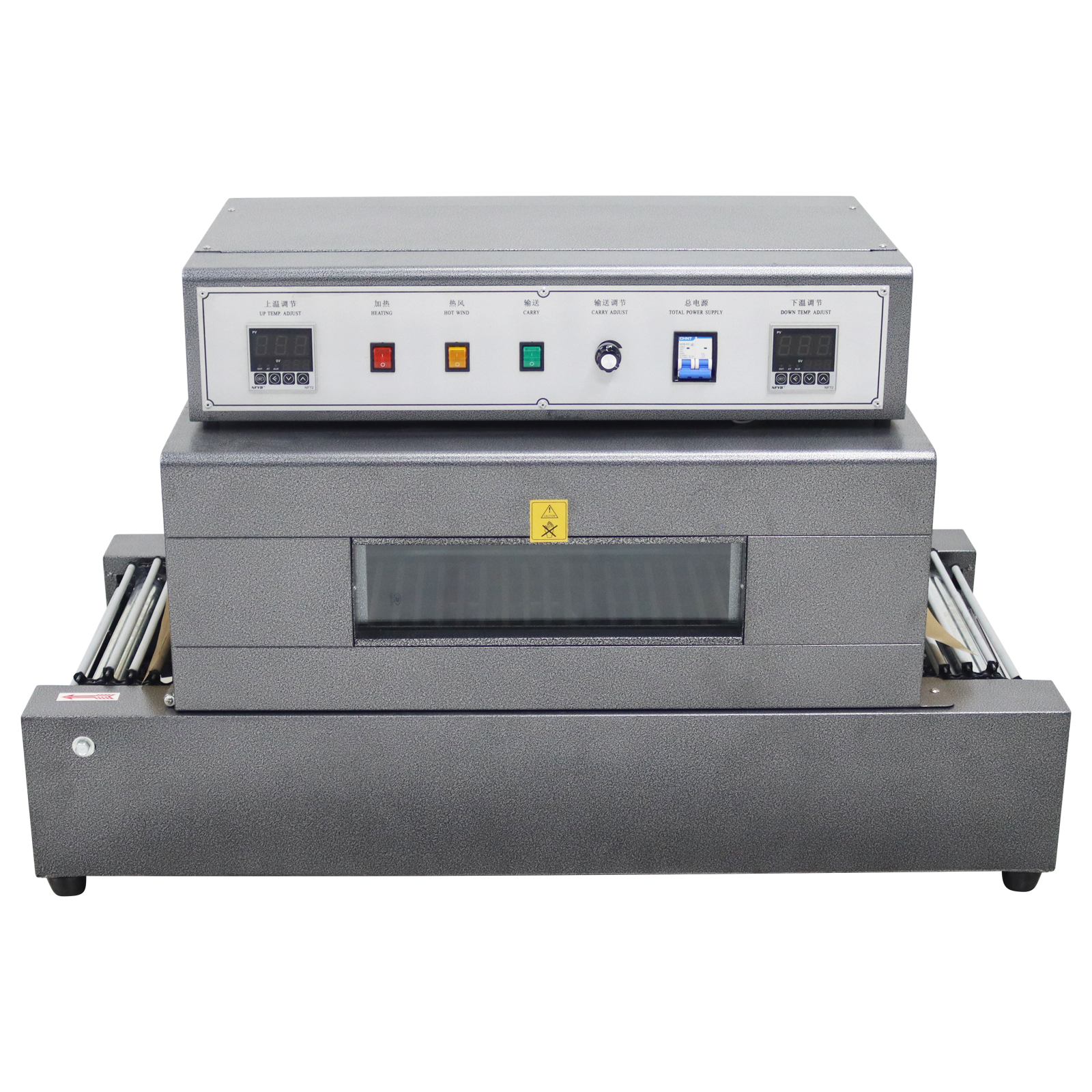

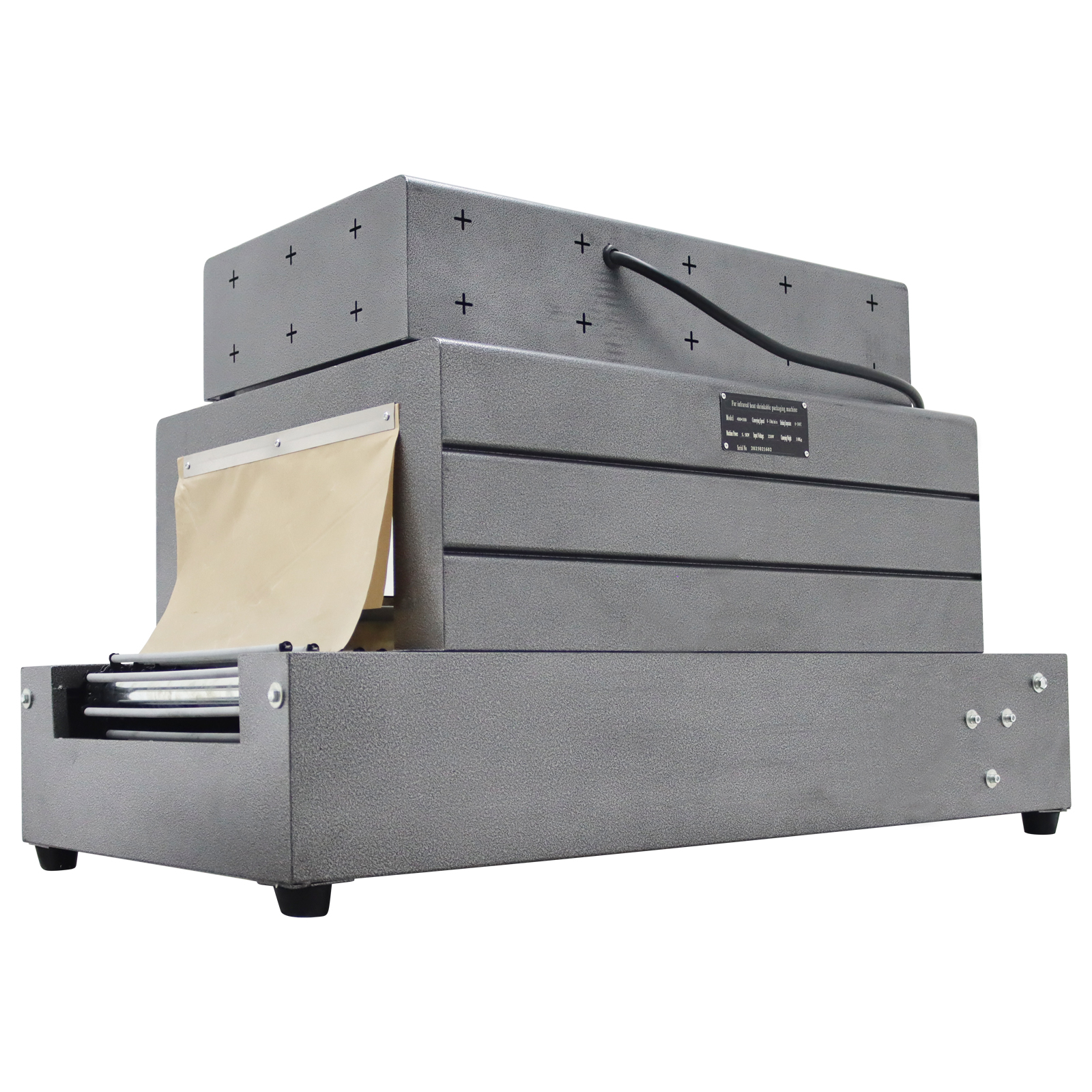

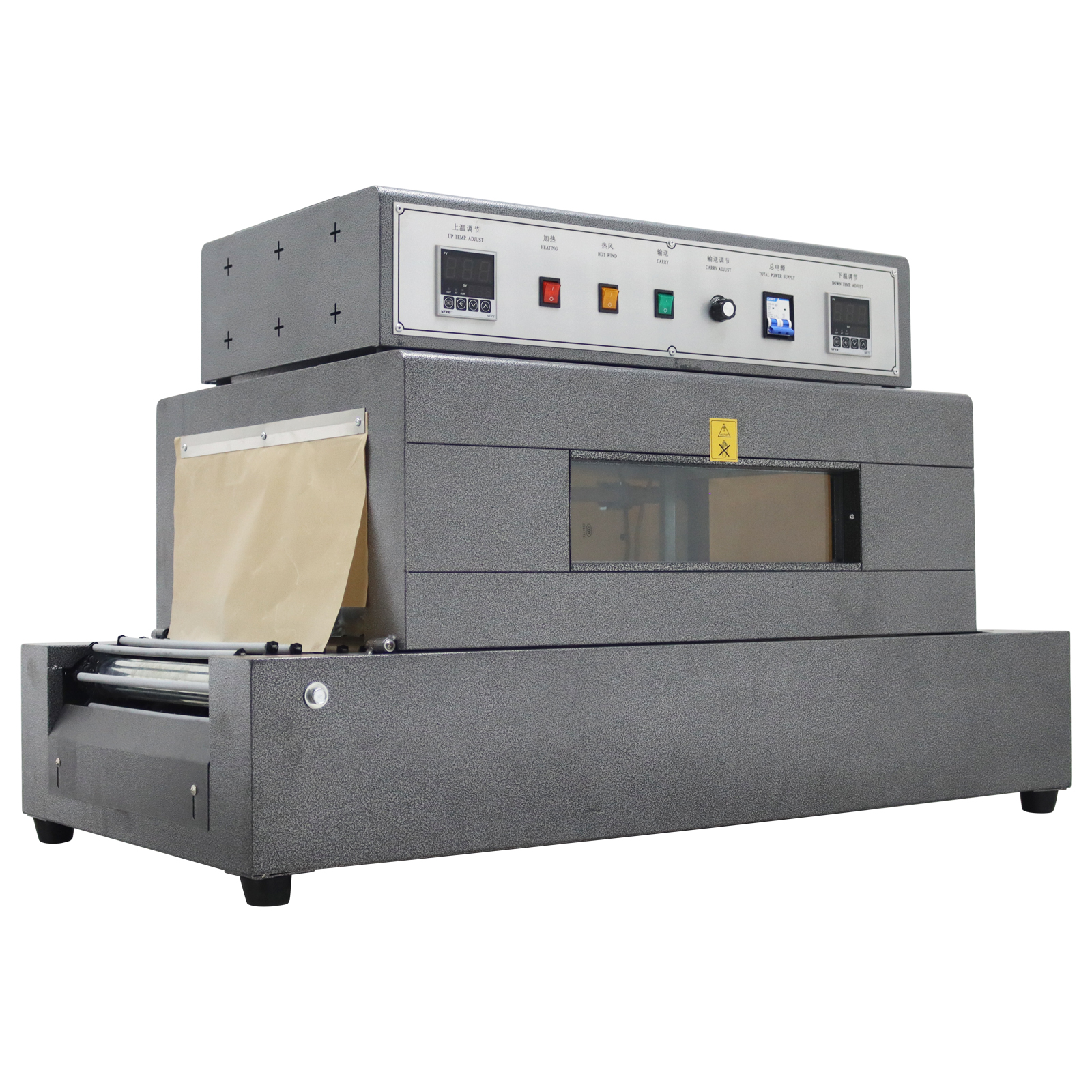

220V Shrink Tunnel Packaging Machine |
|
BS-4020

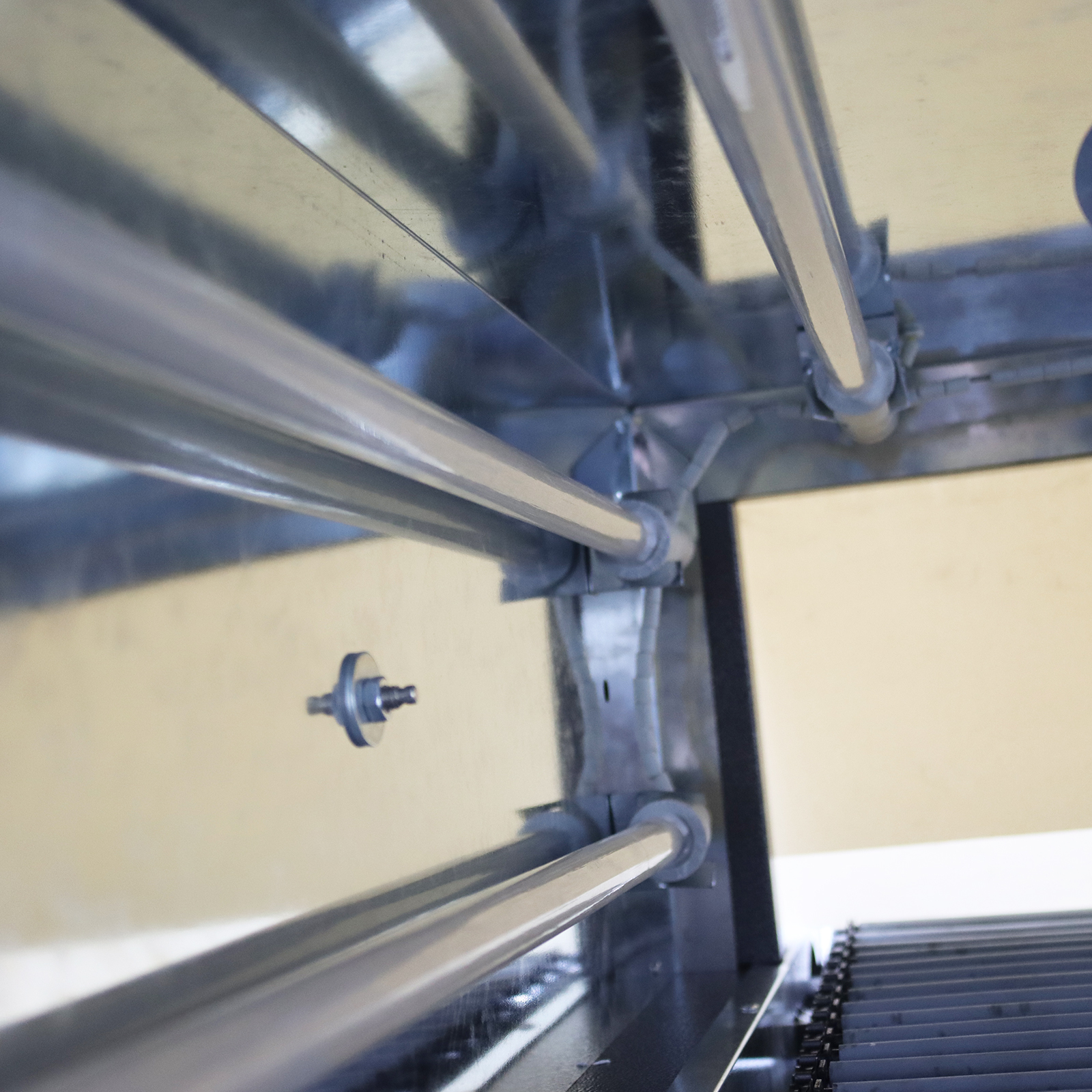

thermal shrink packaging machine adopts quartz farinfrared tubes in
direct heating or PVC/POF shrinking membrane to achieve optimal
contraction packaging.The machine is made reliable by an electronic stepless
shift and booster in temperature control,The packed products can be
sealed well,be prevented from getting damp and be protected against knocks.It
is suitable for tight wrapping and packaging of many articles and tray
packaging .which is applied in contraction packaging. |
|
 |
|
Product parameter: |
 |
| Material: |
Iron spray paint |
|
Max shrink size： |
15.75"X7.87" (40X20cm) |
|
Max.feeding weight： |
10Kg (22Lb) |
|
Conveyer speed： |
0-32.8/ft (0-10m/min) |
|
Power： |
5500W |
| Voltage: |
220V |
|

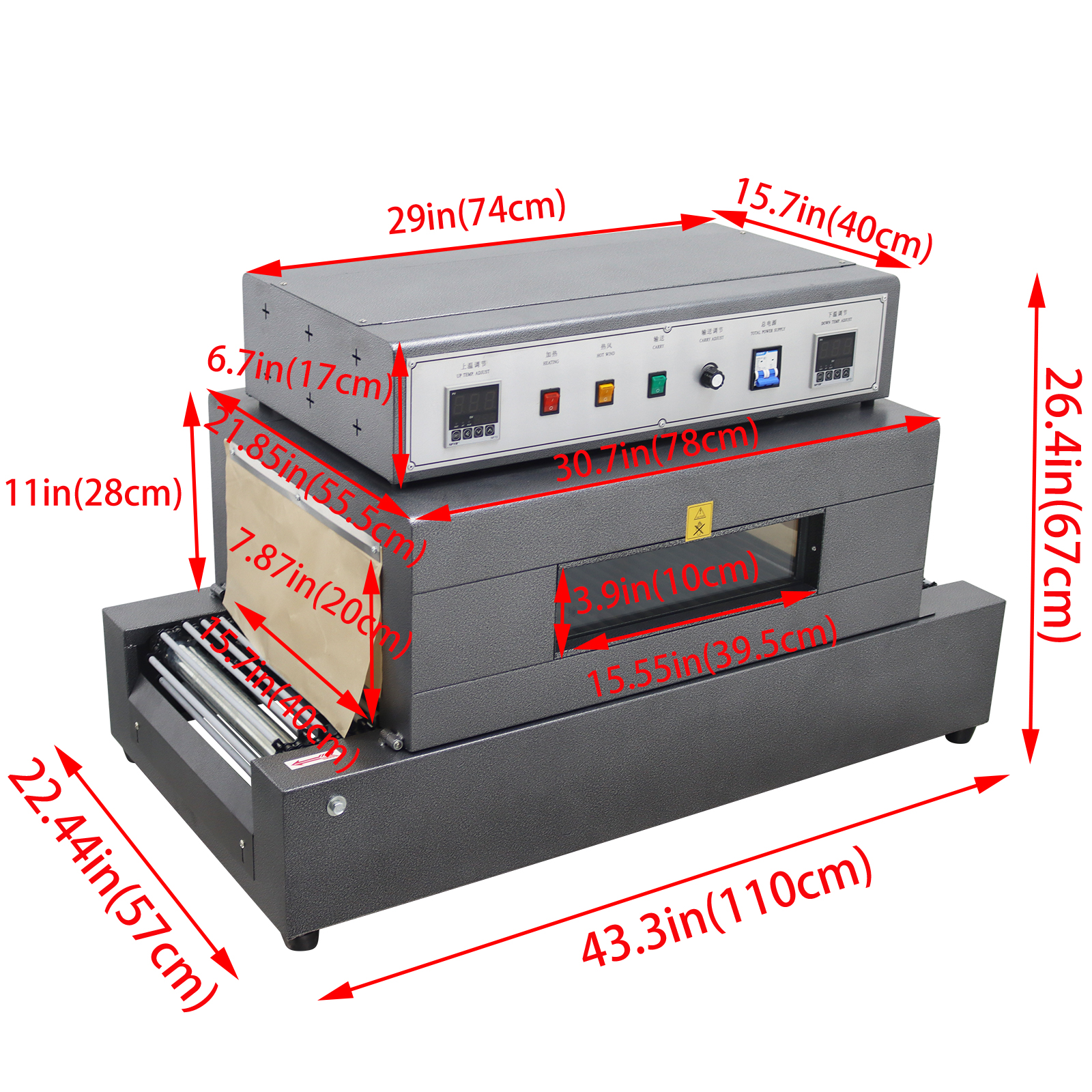

Machine size: |
43.3*22.44*26.37inch/110*57*67cm |
|
|
Shrinking |
Thickness (mm) |
Heating time(s) |
Temperature (℃） |
|
membrane |
|
|
|
|
PVC |
0.02 -0. 06 |
5-10. |
110- 130 |
|
POF |
0.02~0.06 |
5~
12 |
120-180 |
|
 |

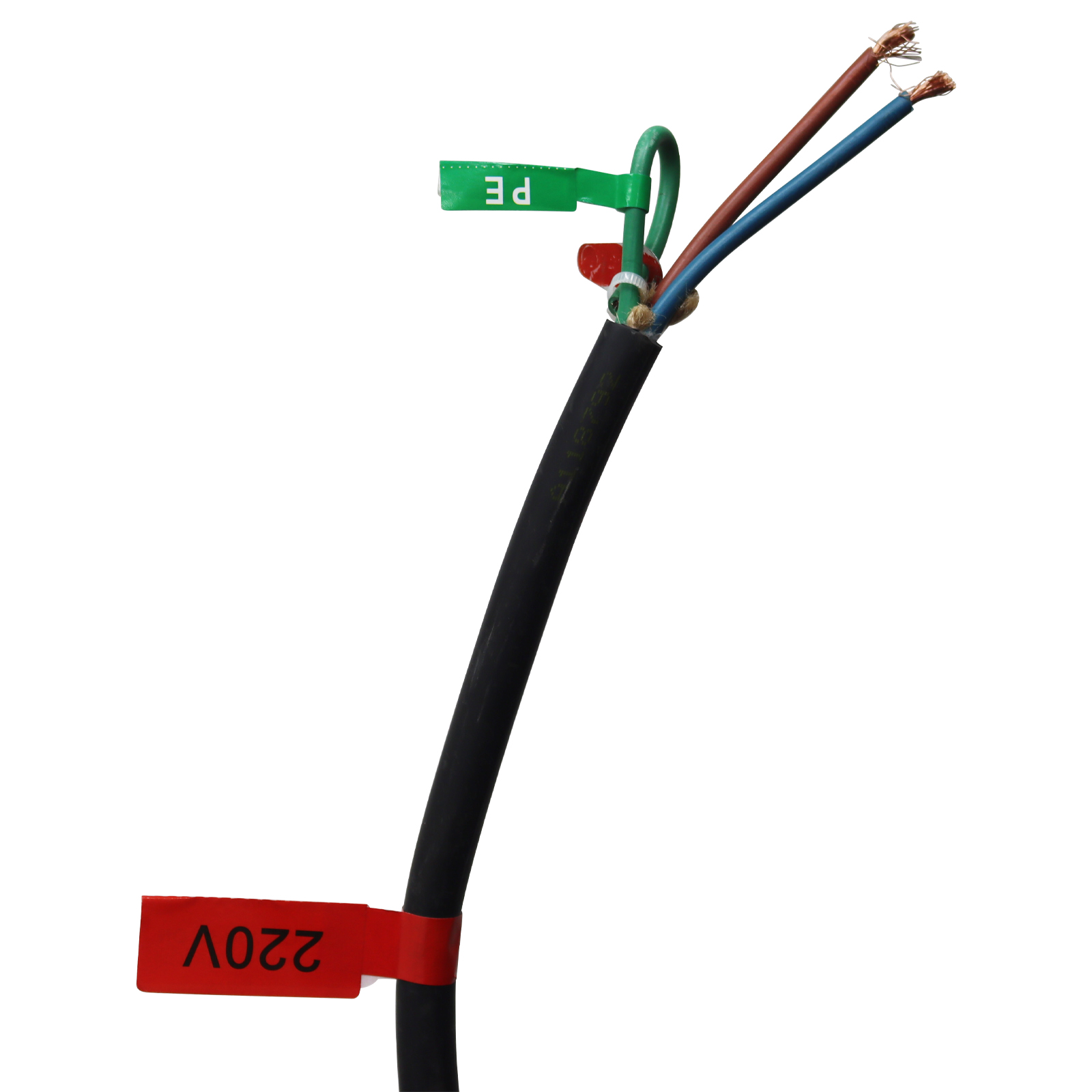

This machine has no plug and needs to be
connected to the air switch for use by the customer (we have a video of the
wiring, if you can't wire it, you can contact us for a video reference) |
|
Feature: |
|
|

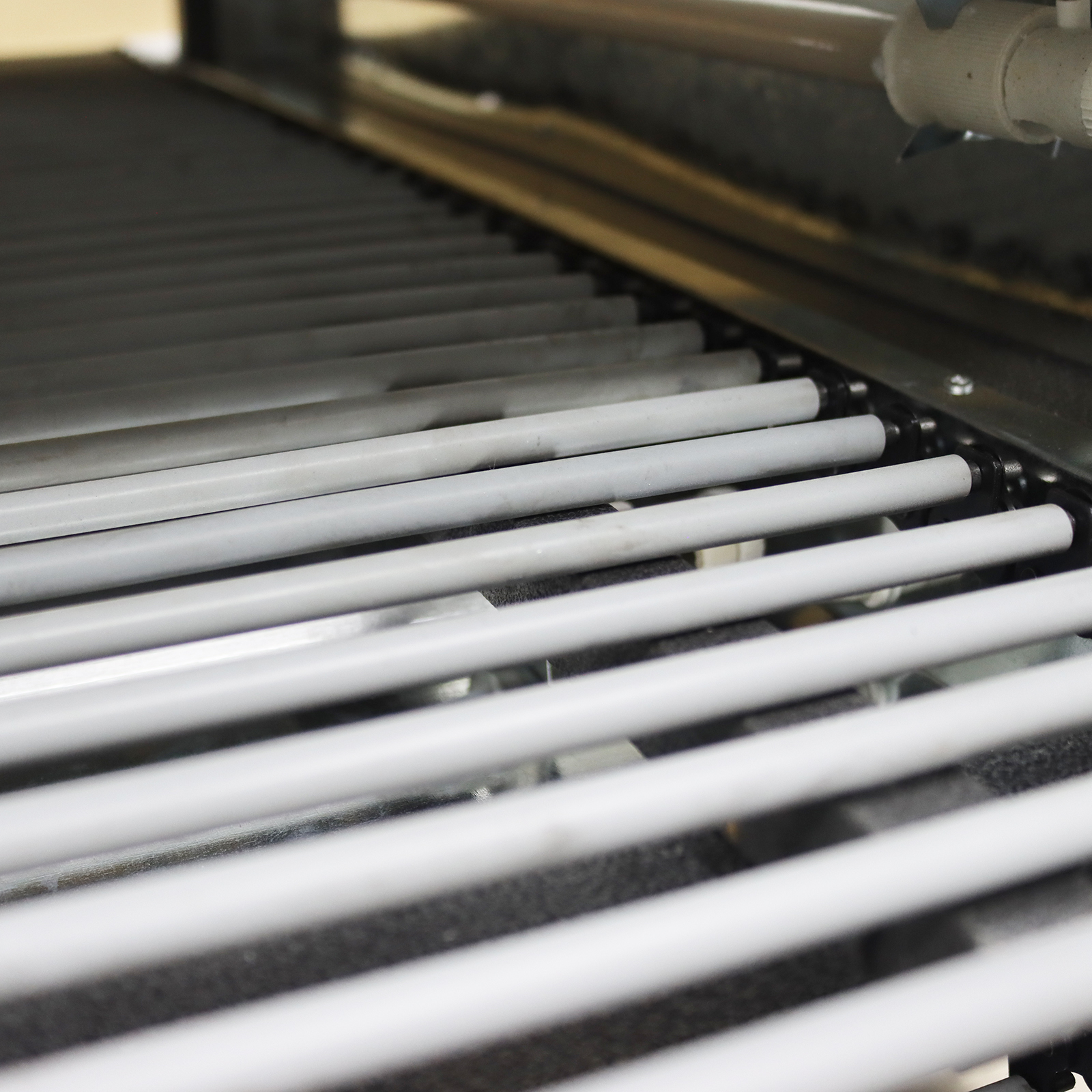

Chain conveyor belt
(recommended for products with large volume and heavy weight)
The chain conveyor belt adopts a spring steel strip inserted in the
middle of the chain. The steel strip has a heat-resistant silicone tube
that can isolate heat and not cause deformation of the wrapped film. The
shrinkage effect is very good, and the spacing between the chains is
2CM. Circular products can be stuck between the gaps and contract better
as the conveyor belt rolls. Products with larger contact surfaces are
suitable for this shrinkage machine. |
|

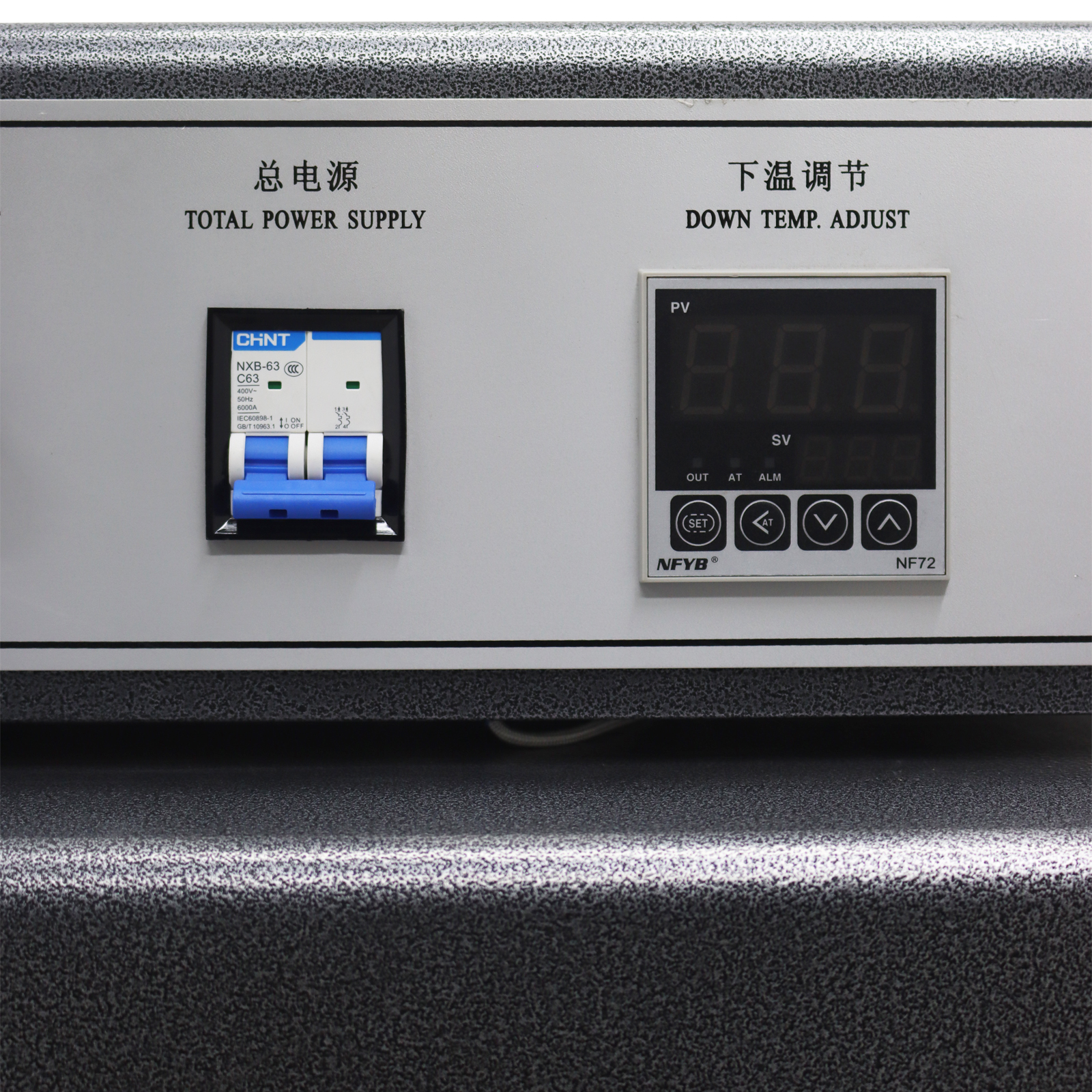

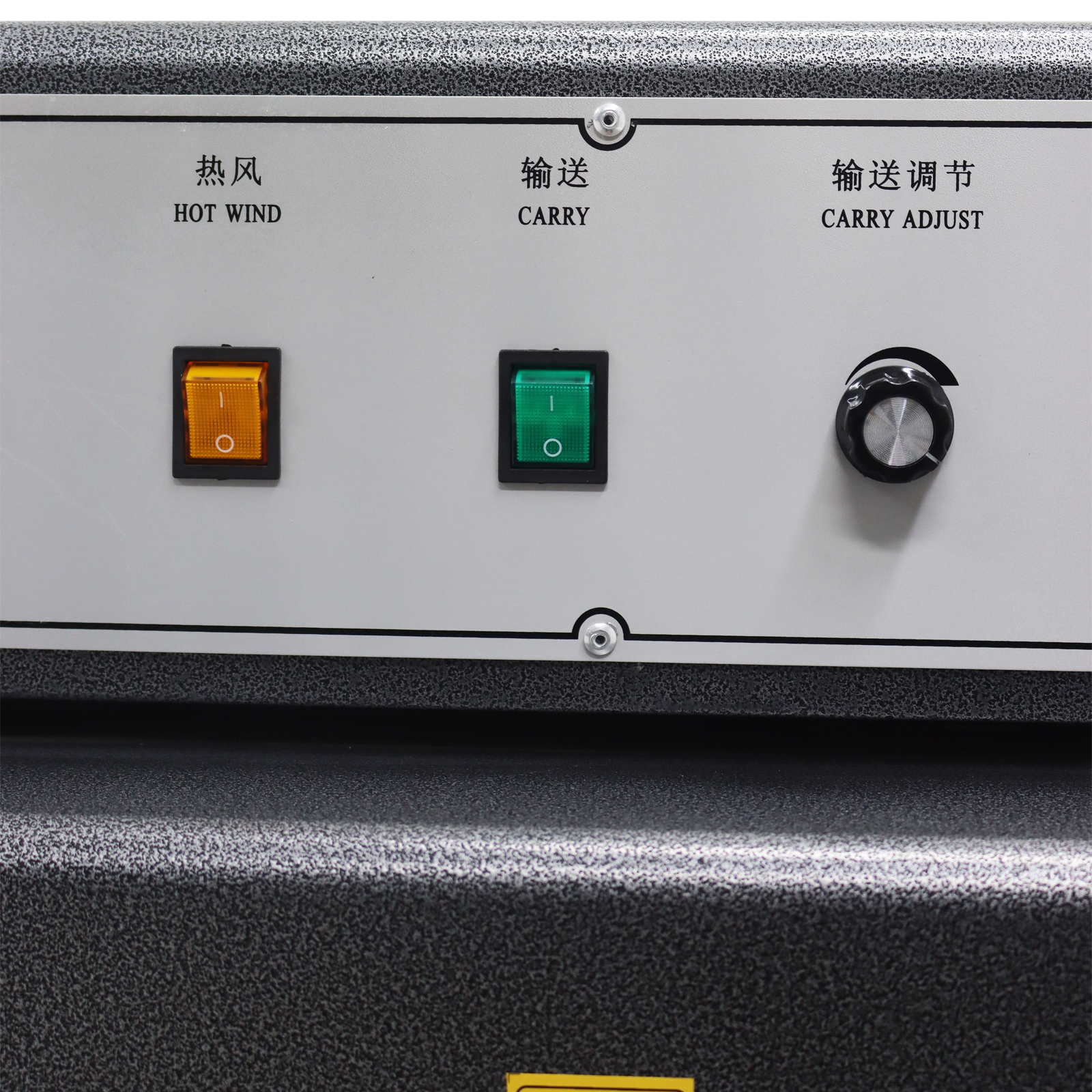

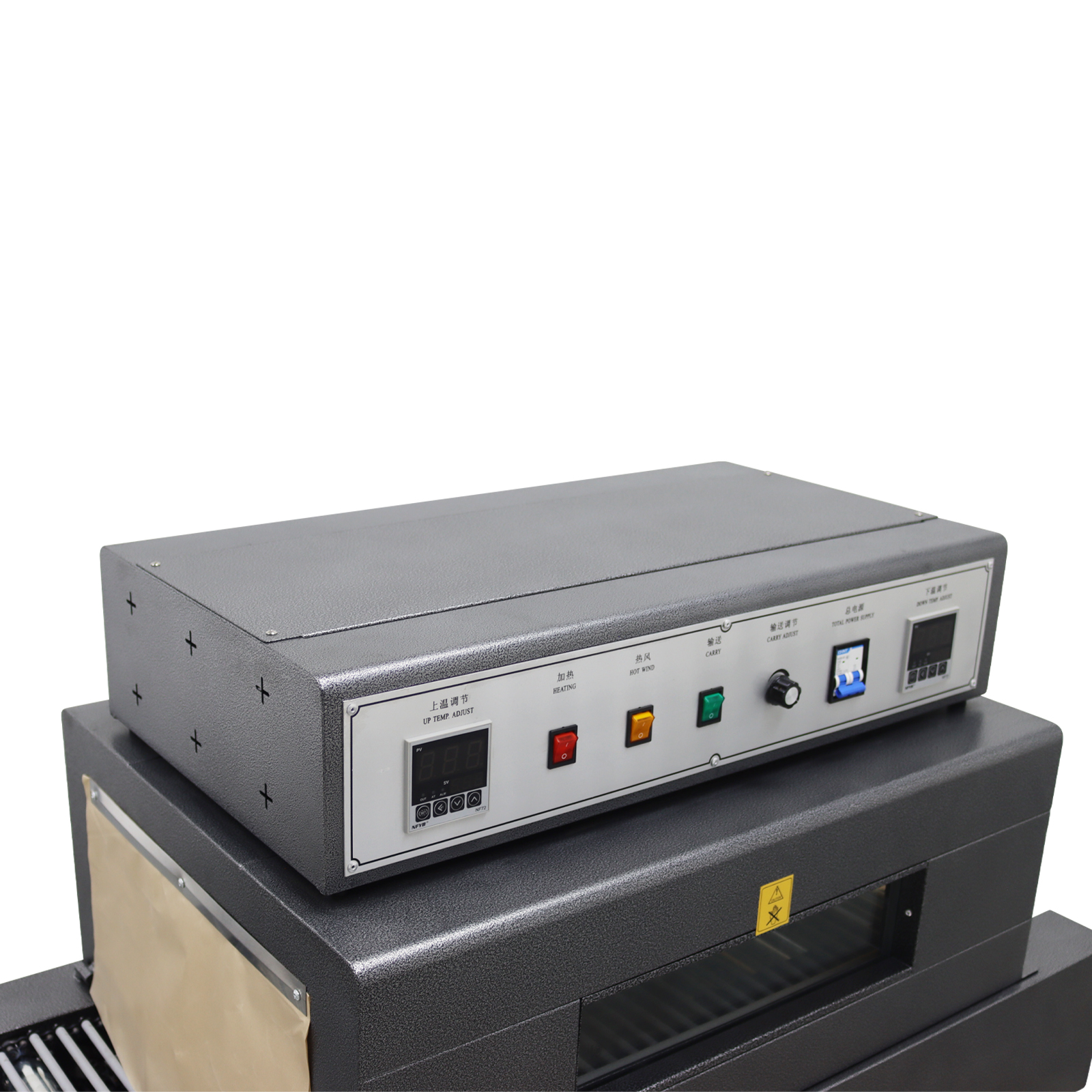

Intelligent control panel
Digital display screen, adjustable temperature, LED light indication,
easy to operate. |
 |
 |
The machine is equipped
with a transparent furnace, which allows for a clear view of the
packaging of goose products inside the furnace, making it more
convenient to use.
|
|
Overload protector
Adopting an independent overload protector, effectively preventing
problems such as overheating and overcurrent, safe and durable. |
 |
 |

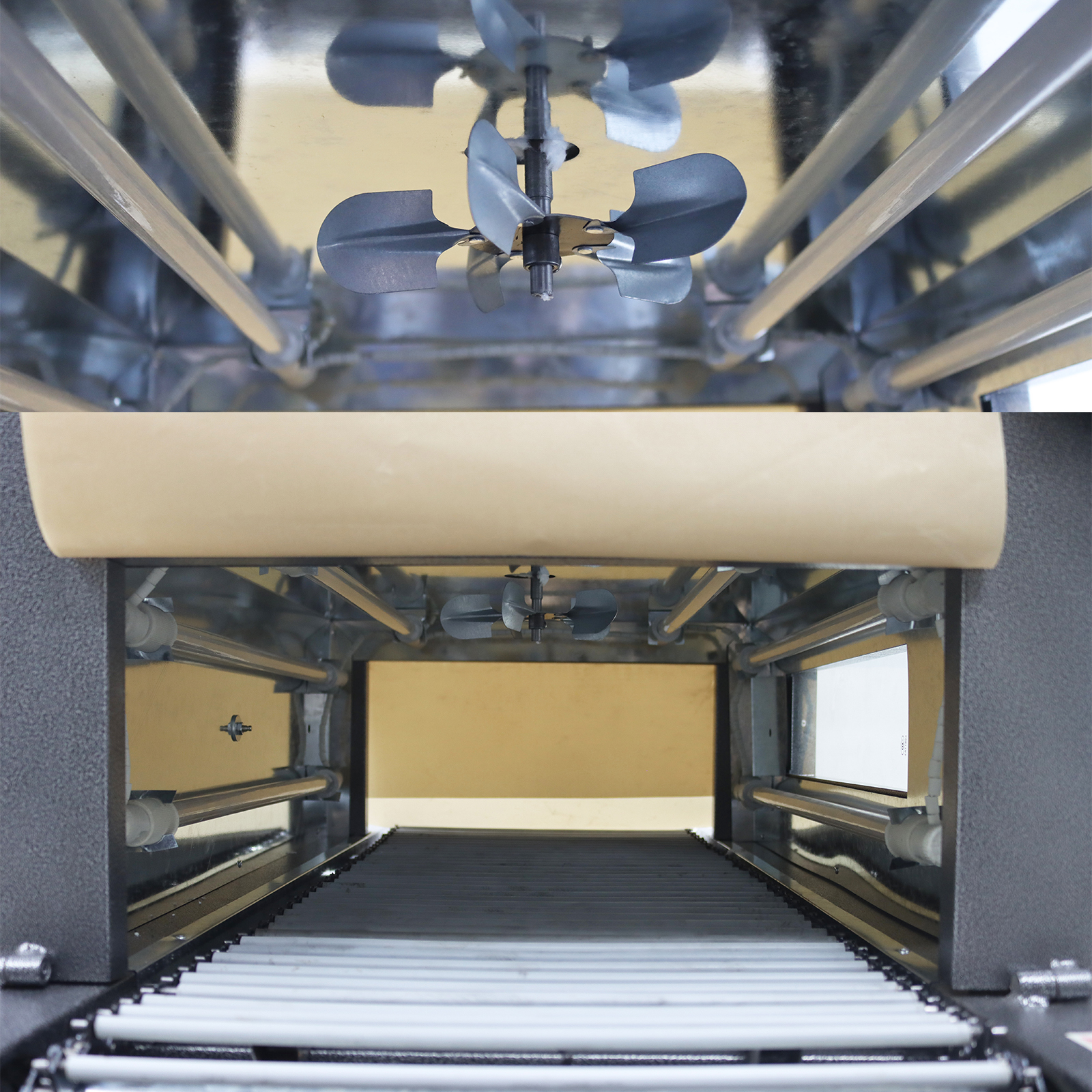

The machine is equipped with an
enlarged furnace space, which increases the volume of the space and
allows customers to shrink the product size to a smaller limit. The
machine can be used for multiple products, making it convenient for
customers' production needs. |
|
Product
safety precautions: |
To ensure safe production, please read the
following precautions carefully:
1. Remember the principle of "safety
first" and operate this tool correctly;
2. Strictly start this machine according to the appropriate power
supply;
3. When the machine is working, it is strictly prohibited from reaching into
the inside of the shrinking machine to prevent burns. After stopping the
machine, it is necessary to wait for it to cool down for a period of
time before the user touches the inside of the machine;
4. It is strictly prohibited from using strong acid and alkaline solutions
to clean and wipe this machine; |
|
Details: |
|
 |
 |
|
 |
 |
|
Product display: |
|
 |
|
 |
|

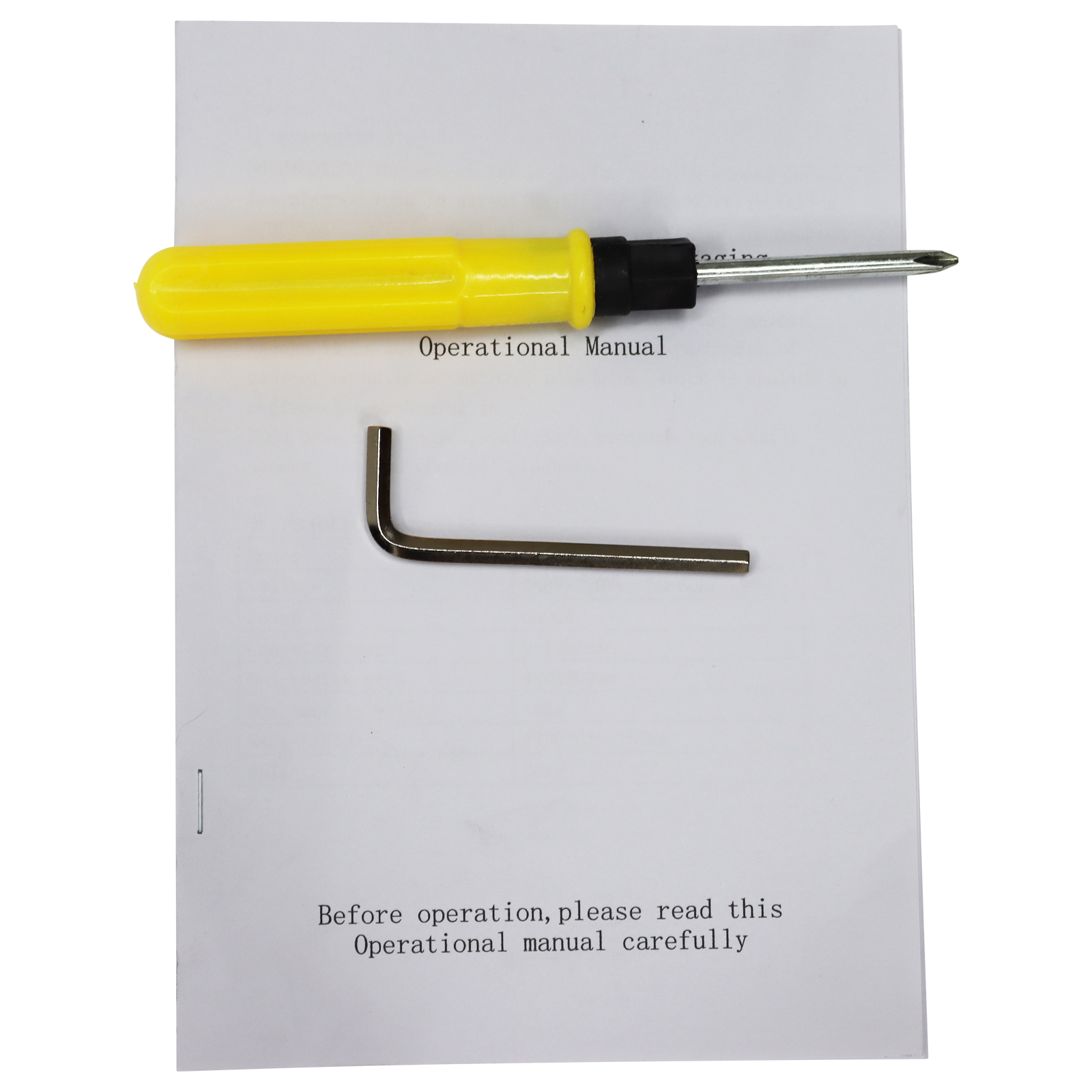

Item include：220V
Shrink Tunnel Packaging Machine*1 |
|
Item Number: 021610 |
|
You can make order
with no worry.
Any concerns just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
